Electro-Optical Rotary Joints

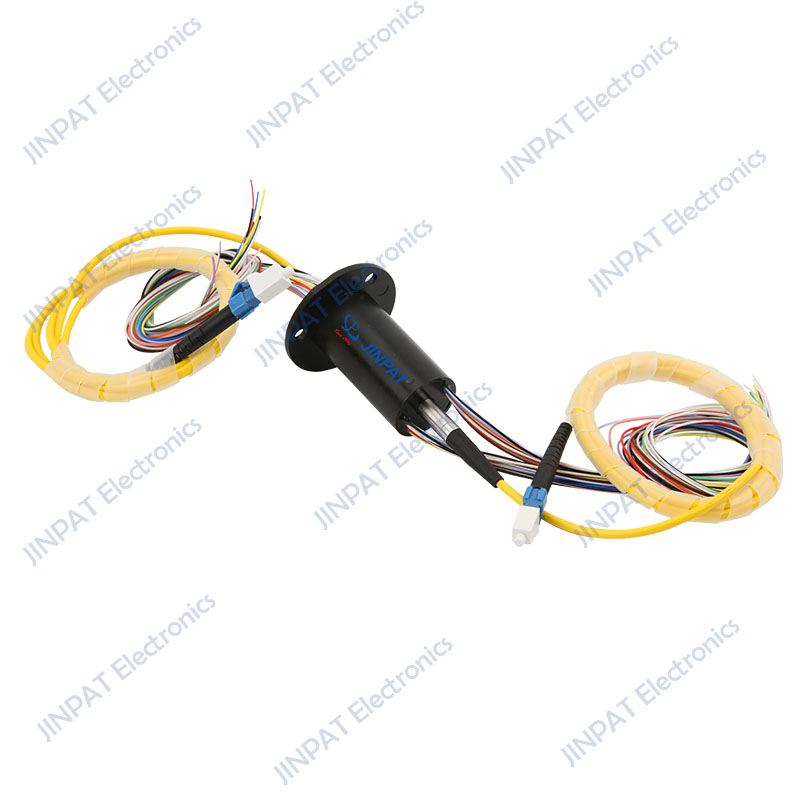

JINPAT's Electro-Optical Rotary Joints (EORJs) provide a unified solution for rotating systems by seamlessly integrating optical and electrical transmission. They deliver uninterrupted, high-fidelity transfer of high-bandwidth data ( FORJs) and power through a robust, compact interface. Engineered to perform with minimal attenuation and full EMI immunity in challenging conditions, these EORJs support precision applications from real-time sensing to medical diagnostics, with customization available for diverse industrial needs.
| Model Code | No. of Fiber Channels | Insertion loss | No. of Power Circuits | Voltage | Outer Diameter(mm) | Supported Signal Types | Customization Options |
|---|---|---|---|---|---|---|---|
| LPC-D35-0315-2502-01E3-01FO | 1 | 2dB | 28 | 0~220V | ∅35 | USB 2.0 , Fast Ethernet , Gigabit Ethernet , HD-SDI , Common Signals | 1.Customizable mechanical dimensions |
| LPC-D60-2005-30S-01FO | 1 | 2dB | 20 | 0~220V | ∅60 | USB 2.0 , Fast Ethernet , Gigabit Ethernet , HD-SDI , Common Signals | 2.Configurable power and signal channels |
| LPT000-0210-02FO | 2-7 | 4dB | 2 | 0-380V | ∅112 | Fast Ethernet , Gigabit Ethernet , Common Signals | 3.Full-frequency compatibility up to DC–67GHz RF |
| LPT000-0320-03FO | 2-7 | 4dB | 3 | 0-380V | ∅190 | Fast Ethernet , Gigabit Ethernet , Common Signals | 4.Integration with pneumatic and hydraulic rotary unions |
| LPT000-0415-12S-02E3-04FO | 2-7 | 4dB | 4 | 0-380V | ∅108 | Fast Ethernet , Gigabit Ethernet , Common Signals | 5.Customizable IP protection level |
| LPT000-0305-05FO | 2-7 | 4dB | 3 | 0-380V | ∅148 | Fast Ethernet , Gigabit Ethernet , Common Signals | 6.Optional housing materials (aluminum alloy, stainless steel, etc.) |
| LPT000-0640-0210-06FO | 2-7 | 4dB | 6 | 0-380V | ∅190 | Fast Ethernet , Gigabit Ethernet , Common Signals | 7.Mixed high-speed data transmission |
| LPT000-1210-39S-01E3-12FO | 8-18 | 5dB | 12 | 0-380V | ∅140 | Fast Ethernet , Gigabit Ethernet , Common Signals | supported, including: •USB 2.0 •Analog HD video (CVBS/CVI/AHD/TVI/XVI; PAL/NTSC/SECAM) •Ethernet slip rings (Fast/Gigabit/Industrial Ethernet) •Fieldbus slip rings (RS422, RS485, Profibus, Modbus, DeviceNet, CC-Link, CAN/CANbus, InterBus) |
| LPA000-12400-0454-0827-0423-0813-04S-32FO | 18-35 | 5dB | 32 | / | ∅1080 | Fast Ethernet , Gigabit Ethernet , Common Signals | •Serial communication (I2C, BISS, SSI, SPI, UART, RS232, TTL, MIL-STD-1553B, IEEE 1394b) •RTD signals •Thermocouple signals •Sensor signals •Encoder signals |
