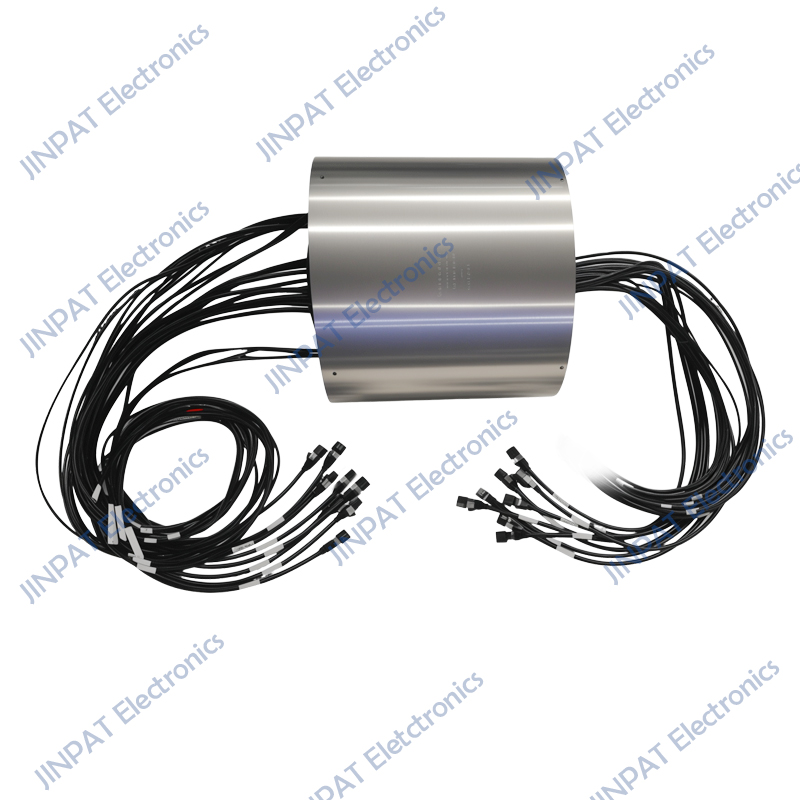

Ethernet Slip Rings (Through-bore type)
Ethernet slip rings (through-bore type) are critical components that transmit Ethernet data and power between stationary and rotating structures. Their hollow bore design allows for the passage of shafts or tubing, saving crucial space in machinery. They enable reliable, high-speed network connectivity for equipment requiring continuous 360-degree rotation, such as wind turbines and industrial robots.
| Model Code | ID(mm) | OD(mm) | Ethernet Support | Ethernet Channels(set) | Current Circuits(5A/Signal) | Current Circuits(10A) | Current Circuits(15A) | IP |
|---|---|---|---|---|---|---|---|---|
| LPT025-0605-01E(2-3) | ∅25.4 | ∅86 | 100M ✔ / 1G ✔ | 1 | 6 | / | / | IP50~IP68 |
| LPT025-0610-01E(2-3) | ∅25.4 | ∅86 | 100M ✔ / 1G ✔ | 1 | / | 6 | / | IP50~IP68 |
| LPT025-0615-01E(2-3) | ∅25.4 | ∅86 | 100M ✔ / 1G ✔ | 1 | / | / | 6 | IP50~IP68 |
| LPT025-1205-01E(2-3) | ∅25.4 | ∅86 | 100M ✔ / 1G ✔ | 1 | 12 | / | / | IP50~IP68 |
| LPT025-1210-01E(2-3) | ∅25.4 | ∅86 | 100M ✔ / 1G ✔ | 1 | / | 12 | / | IP50~IP68 |
| LPT025-1215-01E(2-3) | ∅25.4 | ∅86 | 100M ✔ / 1G ✔ | 1 | / | / | 12 | IP50~IP68 |
| LPT025-0605-02E(2-3) | ∅25.4 | ∅86 | 100M ✔ / 1G ✔ | 2 | 6 | / | / | IP50~IP68 |
| LPT025-0610-02E(2-3) | ∅25.4 | ∅86 | 100M ✔ / 1G ✔ | 2 | / | 6 | / | IP50~IP68 |
| LPT025-0615-02E(2-3) | ∅25.4 | ∅86 | 100M ✔ / 1G ✔ | 2 | / | / | 6 | IP50~IP68 |
| LPT025-1205-02E(2-3) | ∅25.4 | ∅86 | 100M ✔ / 1G ✔ | 2 | 12 | / | / | IP50~IP68 |
| LPT025-1210-02E(2-3) | ∅25.4 | ∅86 | 100M ✔ / 1G ✔ | 2 | / | 12 | / | IP50~IP68 |
| LPT025-1215-02E(2-3) | ∅25.4 | ∅86 | 100M ✔ / 1G ✔ | 2 | / | / | 12 | IP50~IP68 |
| LPT038-0605-01E(2-3) | ∅38.1 | ∅99 | 100M ✔ / 1G ✔ | 1 | 6 | / | / | IP50~IP68 |
| LPT038-0610-01E(2-3) | ∅38.1 | ∅99 | 100M ✔ / 1G ✔ | 1 | / | 6 | / | IP50~IP68 |
| LPT038-0615-01E(2-3) | ∅38.1 | ∅99 | 100M ✔ / 1G ✔ | 1 | / | / | 6 | IP50~IP68 |
| LPT038-1205-01E(2-3) | ∅38.1 | ∅99 | 100M ✔ / 1G ✔ | 1 | 12 | / | / | IP50~IP68 |
| LPT038-1210-01E(2-3) | ∅38.1 | ∅99 | 100M ✔ / 1G ✔ | 1 | / | 12 | / | IP50~IP68 |
| LPT038-1215-01E(2-3) | ∅38.1 | ∅99 | 100M ✔ / 1G ✔ | 1 | / | / | 12 | IP50~IP68 |
| LPT038-0605-02E(2-3) | ∅38.1 | ∅99 | 100M ✔ / 1G ✔ | 2 | 6 | / | / | IP50~IP68 |
| LPT038-0610-02E(2-3) | ∅38.1 | ∅99 | 100M ✔ / 1G ✔ | 2 | / | 6 | / | IP50~IP68 |
| LPT038-0615-02E(2-3) | ∅38.1 | ∅99 | 100M ✔ / 1G ✔ | 2 | / | / | 6 | IP50~IP68 |
| LPT038-1205-02E(2-3) | ∅38.1 | ∅99 | 100M ✔ / 1G ✔ | 2 | 12 | / | / | IP50~IP68 |
| LPT038-1210-02E(2-3) | ∅38.1 | ∅99 | 100M ✔ / 1G ✔ | 2 | / | 12 | / | IP50~IP68 |
| LPT038-1215-02E(2-3) | ∅38.1 | ∅99 | 100M ✔ / 1G ✔ | 2 | / | / | 12 | IP50~IP68 |
| LPT050-0605-01E(2-3) | ∅50 | ∅119 | 100M ✔ / 1G ✔ | 1 | 6 | / | / | IP50~IP68 |
| LPT050-0610-01E(2-3) | ∅50 | ∅119 | 100M ✔ / 1G ✔ | 1 | / | 6 | / | IP50~IP68 |
| LPT050-0615-01E(2-3) | ∅50 | ∅119 | 100M ✔ / 1G ✔ | 1 | / | / | 6 | IP50~IP68 |
| LPT050-1205-01E(2-3) | ∅50 | ∅119 | 100M ✔ / 1G ✔ | 1 | 12 | / | / | IP50~IP68 |
| LPT050-1210-01E(2-3) | ∅50 | ∅119 | 100M ✔ / 1G ✔ | 1 | / | 12 | / | IP50~IP68 |
| LPT050-1215-01E(2-3) | ∅50 | ∅119 | 100M ✔ / 1G ✔ | 1 | / | / | 12 | IP50~IP68 |
| LPT050-0605-02E(2-3) | ∅50 | ∅119 | 100M ✔ / 1G ✔ | 2 | 6 | / | / | IP50~IP68 |
| LPT050-0610-02E(2-3) | ∅50 | ∅119 | 100M ✔ / 1G ✔ | 2 | / | 6 | / | IP50~IP68 |
| LPT050-0615-02E(2-3) | ∅50 | ∅119 | 100M ✔ / 1G ✔ | 2 | / | / | 6 | IP50~IP68 |
| LPT050-1205-02E(2-3) | ∅50 | ∅119 | 100M ✔ / 1G ✔ | 2 | 12 | / | / | IP50~IP68 |
| LPT050-1210-02E(2-3) | ∅50 | ∅119 | 100M ✔ / 1G ✔ | 2 | / | 12 | / | IP50~IP68 |
| LPT050-1215-02E(2-3) | ∅50 | ∅119 | 100M ✔ / 1G ✔ | 2 | / | / | 12 | IP50~IP68 |
| LPT060-0605-01E(2-3) | ∅60 | ∅135 | 100M ✔ / 1G ✔ | 1 | 6 | / | / | IP50~IP68 |
| LPT060-0610-01E(2-3) | ∅60 | ∅135 | 100M ✔ / 1G ✔ | 1 | / | 6 | / | IP50~IP68 |
| LPT060-0615-01E(2-3) | ∅60 | ∅135 | 100M ✔ / 1G ✔ | 1 | / | / | 6 | IP50~IP68 |
| LPT060-1205-01E(2-3) | ∅60 | ∅135 | 100M ✔ / 1G ✔ | 1 | 12 | / | / | IP50~IP68 |
| LPT060-1210-01E(2-3) | ∅60 | ∅135 | 100M ✔ / 1G ✔ | 1 | / | 12 | / | IP50~IP68 |
| LPT060-1215-01E(2-3) | ∅60 | ∅135 | 100M ✔ / 1G ✔ | 1 | / | / | 12 | IP50~IP68 |
| LPT060-0605-02E(2-3) | ∅60 | ∅135 | 100M ✔ / 1G ✔ | 2 | / | 6 | / | IP50~IP68 |
| LPT060-0610-02E(2-3) | ∅60 | ∅135 | 100M ✔ / 1G ✔ | 2 | / | / | 6 | IP50~IP68 |
| LPT060-0615-02E(2-3) | ∅60 | ∅135 | 100M ✔ / 1G ✔ | 2 | / | / | 6 | IP50~IP68 |
| LPT060-1205-02E(2-3) | ∅60 | ∅135 | 100M ✔ / 1G ✔ | 2 | 12 | / | / | IP50~IP68 |
| LPT060-1210-02E(2-3) | ∅60 | ∅135 | 100M ✔ / 1G ✔ | 2 | / | 12 | / | IP50~IP68 |
| LPT060-1215-02E(2-3) | ∅60 | ∅135 | 100M ✔ / 1G ✔ | 2 | / | / | 12 | IP50~IP68 |
| LPT070-0605-01E(2-3) | ∅70 | ∅135 | 100M ✔ / 1G ✔ | 1 | 6 | / | / | IP50~IP68 |
| LPT070-0610-01E(2-3) | ∅70 | ∅135 | 100M ✔ / 1G ✔ | 1 | / | 6 | / | IP50~IP68 |
| LPT070-0615-01E(2-3) | ∅70 | ∅135 | 100M ✔ / 1G ✔ | 1 | / | / | 6 | IP50~IP68 |
| LPT070-1205-01E(2-3) | ∅70 | ∅135 | 100M ✔ / 1G ✔ | 1 | 12 | / | / | IP50~IP68 |
| LPT070-1210-01E(2-3) | ∅70 | ∅135 | 100M ✔ / 1G ✔ | 1 | / | 12 | / | IP50~IP68 |
| LPT070-1215-01E(2-3) | ∅70 | ∅135 | 100M ✔ / 1G ✔ | 1 | / | / | 12 | IP50~IP68 |
| LPT070-0605-02E(2-3) | ∅70 | ∅135 | 100M ✔ / 1G ✔ | 2 | 6 | / | / | IP50~IP68 |
| LPT070-0610-02E(2-3) | ∅70 | ∅135 | 100M ✔ / 1G ✔ | 2 | / | 6 | / | IP50~IP68 |
| LPT070-0615-02E(2-3) | ∅70 | ∅135 | 100M ✔ / 1G ✔ | 2 | / | / | 6 | IP50~IP68 |
| LPT070-1205-02E(2-3) | ∅70 | ∅135 | 100M ✔ / 1G ✔ | 2 | 12 | / | / | IP50~IP68 |
| LPT070-1210-02E(2-3 | ∅70 | ∅135 | 100M ✔ / 1G ✔ | 2 | / | 12 | / | IP50~IP68 |
| LPT070-1215-02E(2-3) | ∅70 | ∅135 | 100M ✔ / 1G ✔ | 2 | / | / | 12 | IP50~IP68 |
| LPT080-0605-01E(2-3) | ∅80 | ∅160 | 100M ✔ / 1G ✔ | 1 | 6 | / | / | IP50~IP68 |
| LPT080-0610-01E(2-3) | ∅80 | ∅160 | 100M ✔ / 1G ✔ | 1 | / | 6 | / | IP50~IP68 |
| LPT080-0615-01E(2-3) | ∅80 | ∅160 | 100M ✔ / 1G ✔ | 1 | / | / | 6 | IP50~IP68 |
| LPT080-1205-01E(2-3) | ∅80 | ∅160 | 100M ✔ / 1G ✔ | 1 | 12 | / | / | IP50~IP68 |
| LPT080-1210-01E(2-3) | ∅80 | ∅160 | 100M ✔ / 1G ✔ | 1 | / | 12 | / | IP50~IP68 |
| LPT080-1215-01E(2-3) | ∅80 | ∅160 | 100M ✔ / 1G ✔ | 1 | / | / | 12 | IP50~IP68 |
| LPT080-0605-02E(2-3) | ∅80 | ∅160 | 100M ✔ / 1G ✔ | 2 | 6 | / | / | IP50~IP68 |
| LPT080-0610-02E(2-3) | ∅80 | ∅160 | 100M ✔ / 1G ✔ | 2 | / | 6 | / | IP50~IP68 |
| LPT080-0615-02E(2-3) | ∅80 | ∅160 | 100M ✔ / 1G ✔ | 2 | / | / | 6 | IP50~IP68 |
| LPT080-1205-02E(2-3) | ∅80 | ∅160 | 100M ✔ / 1G ✔ | 2 | 12 | / | / | IP50~IP68 |
| LPT080-1210-02E(2-3) | ∅80 | ∅160 | 100M ✔ / 1G ✔ | 2 | / | 12 | / | IP50~IP68 |
| LPT080-1215-02E(2-3) | ∅80 | ∅160 | 100M ✔ / 1G ✔ | 2 | / | / | 12 | IP50~IP68 |
| LPT096-0605-01E(2-3) | ∅96 | ∅185 | 100M ✔ / 1G ✔ | 1 | 6 | / | / | IP50~IP68 |
| LPT096-0610-01E(2-3) | ∅96 | ∅185 | 100M ✔ / 1G ✔ | 1 | / | 6 | / | IP50~IP68 |
| LPT096-0615-01E(2-3) | ∅96 | ∅185 | 100M ✔ / 1G ✔ | 1 | / | / | 6 | IP50~IP68 |
| LPT096-1205-01E(2-3) | ∅96 | ∅185 | 100M ✔ / 1G ✔ | 1 | 12 | / | / | IP50~IP68 |
| LPT096-1210-01E(2-3) | ∅96 | ∅185 | 100M ✔ / 1G ✔ | 1 | / | 12 | / | IP50~IP68 |
| LPT096-1215-01E(2-3) | ∅96 | ∅185 | 100M ✔ / 1G ✔ | 1 | / | / | 12 | IP50~IP68 |
| LPT096-0605-02E(2-3) | ∅96 | ∅185 | 100M ✔ / 1G ✔ | 2 | 6 | / | / | IP50~IP68 |
| LPT096-0610-02E(2-3) | ∅96 | ∅185 | 100M ✔ / 1G ✔ | 2 | / | 6 | / | IP50~IP68 |
| LPT096-0615-02E(2-2) | ∅96 | ∅185 | 100M ✔ / 1G ✔ | 2 | / | / | 6 | IP50~IP68 |
| LPT096-1205-02E(2-3) | ∅96 | ∅185 | 100M ✔ / 1G ✔ | 2 | 12 | / | / | IP50~IP68 |
| LPT096-1210-02E(2-3) | ∅96 | ∅185 | 100M ✔ / 1G ✔ | 2 | / | 12 | / | IP50~IP68 |
| LPT096-1215-02E(2-3) | ∅96 | ∅185 | 100M ✔ / 1G ✔ | 2 | / | / | 12 | IP50~IP68 |
