LPKS Pancake Slip Rings
- Number of Circuits: 1~10 circuits
- Current: 5A/Signal
- Insulation Resistance: ≥500MΩ@500VDC
- Wire Length rotor/stator：300mm
- Voltage: 240VAC/DC
- Dielectric Strength: 500VAC@50Hz (power) 300VAC@50Hz (signal)

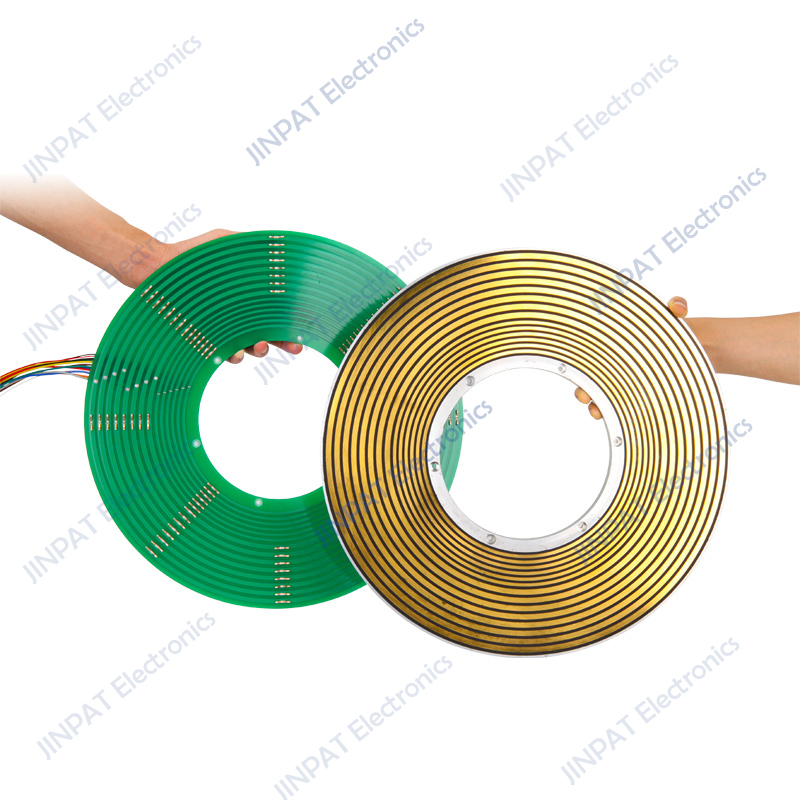

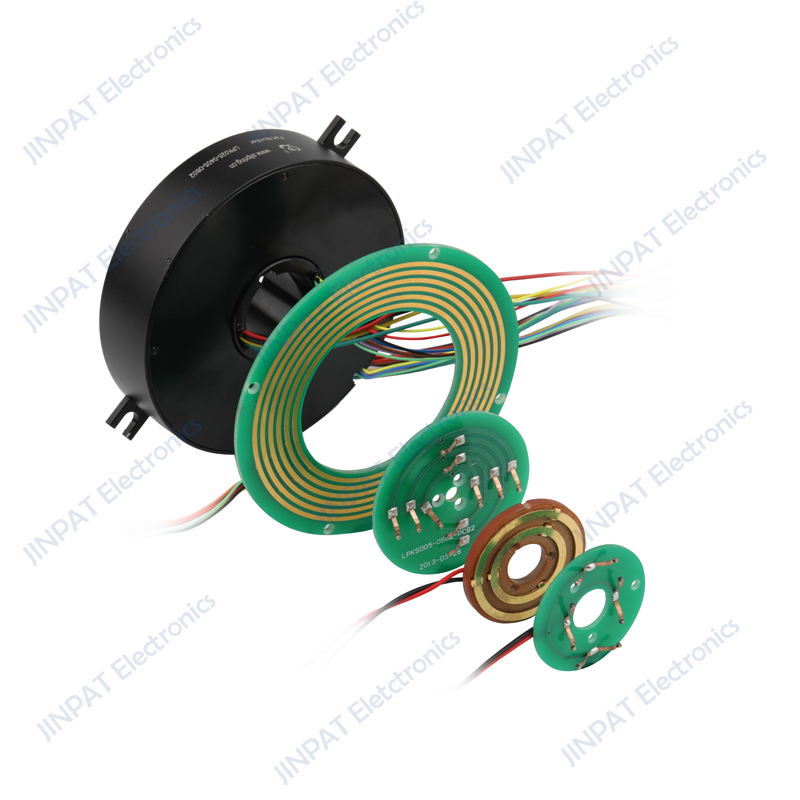

The pancake slip ring is a specialized rotary connector designed to transmit electrical signals and power across a rotating interface in a compact and space-efficient manner. Its flat, disc-like shape makes it ideal for applications with limited vertical space, offering versatility without sacrificing performance.
Features:
Ultra-Thin Profile：minimum thickness up to 5.4m
Space-Saving Design
Transmit analog and digital signal
High-Quality Materials
Shock-resistant, maintenance-free
Main Applications:
◎ Military Equipments
◎ Medical Equipments
◎ Wind Turbine
◎ Test Equipment
◎ Revolving Door
◎ Robot
| Model Code | Voltage | Current (A) | No. of Power Circuits | OD × Length (mm) | Inner Diameter (mm) | Reference Circle (D)/（mm） |
|---|---|---|---|---|---|---|
| LPKS084-0105 | 240V | 5 | 1 | Ф108×7 | 84 | 102 |
| LPKS061-0405 | 240V | 5 | 4 | Ф108×7 | 61 | 102 |
| LPKS036-0705 | 240V | 5 | 7 | Ф108×7 | 36 | 102 |
| LPKS028-0805 | 240V | 5 | 8 | Ф108×7 | 28 | 102 |
| LPKS019-0905 | 240V | 5 | 9 | Ф108×7 | 19 | 102 |
| LPKS005-1005 | 240V | 5 | 10 | Ф108×7 | 5 | 102 |
| LPKS005-0905 | 240V | 5 | 9 | Ф100×7 | 5 | 94 |
| LPKS005-0805 | 240V | 5 | 8 | Ф92×7 | 5 | 86 |
| LPKS005-0705 | 240V | 5 | 7 | Ф84×7 | 5 | 78 |
| LPKS005-0605 | 240V | 5 | 6 | Ф76×7 | 5 | 70 |
| LPKS005-0505 | 240V | 5 | 5 | Ф68×7 | 5 | 63 |
| LPKS005-0405 | 240V | 5 | 4 | Ф60×7 | 5 | 54 |
| LPKS005-0305 | 240V | 5 | 3 | Ф52×7 | 5 | 46 |
| LPKS005-0205 | 240V | 5 | 2 | Ф42×7 | 5 | 38 |
