JINPAT Gas-Electric Slip Rings: The Filling Industry Game-Changer.

Gas and electricity integrated slip rings, also known as electrical rotary joints or hydraulic-electrical slip rings, represent a high-tech mechatronic device. Their core function is to simultaneously, continuously, and reliably transmit electrical power, control signals (such as Ethernet, bus signals, sensor signals, etc.), and fluid media like compressed air between two relatively rotating components within equipment.

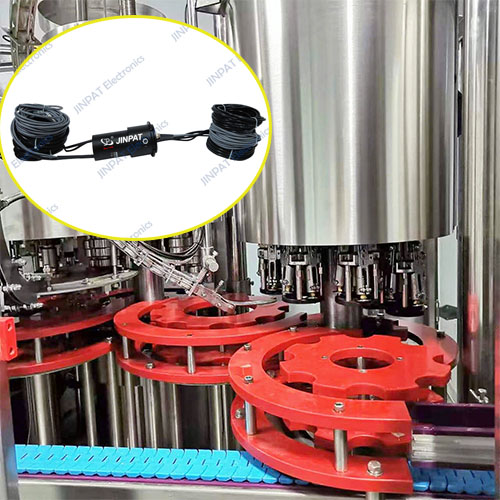

In automated equipment with continuous rotational motion, such as filling machines, the rotating platform must drive execution and detection units like filling valves, sensors, and cameras. The JINPAT gas and electricity integrated slip ring functions as the equipment's “heart and nerve center.” Installed at the rotational hub, it continuously supplies power and information to all rotating electrical and pneumatic components while ensuring 360° unrestricted rotation without cable entanglement. This makes it a critical foundational component for achieving continuous, efficient, and intelligent production.

JINPAT gas and electricity integrated slip rings deliver exceptional performance and reliability, perfectly meeting the demands of high-end filling equipment.

1. Highly Integrated Design

JINPAT slip rings ingeniously integrate electrical circuits and pneumatic channels within a compact housing. This unified design significantly conserves valuable installation space in the rotary head section of filling machines, resulting in a more streamlined and compact equipment structure. It offers greater flexibility to equipment designers, making it particularly suitable for high-speed, multi-station filling systems with extremely constrained spatial layouts.

2. Exceptional Reliability

By eliminating external connection pipes and cables between the electrical slip ring and pneumatic fittings found in traditional solutions, JINPAT slip ring fundamentally removes common failure points such as interface loosening, leakage, and cable wear caused by mechanical vibration. Utilizing high-quality materials, precision manufacturing processes, and sealing technology, it ensures long-term stable operation under high-speed, high-frequency rotation conditions, significantly enhancing the Mean Time Between Failures (MTBF) of the entire filling system.

3. Performance Optimized to the Extreme

JINPAT gas and electricity integrated slip rings achieve “zero-delay” synchronous transmission of power, signals, and gases. This enables the filling machine's control system to precisely control pneumatic valves on the rotary table with millisecond accuracy, ensuring each filling valve's opening and closing actions remain highly synchronized with the rotational position. The result is dramatically improved filling consistency, eliminating issues like dripping, foaming, or underfilling, while also accelerating equipment response and further increasing production cycle times.

4. Significant Overall Cost Savings

While the upfront cost of a single integrated slip ring may exceed that of separate components, its economic benefits are substantial when viewed holistically. It reduces the number of parts, simplifies installation and wiring labor, and lowers inventory management costs. Its smaller footprint enables more compact equipment design, saving factory floor space. More importantly, its high reliability translates to reduced maintenance costs and minimized downtime, creating substantial long-term value for businesses.

5. Streamlined Installation and Maintenance

JINPAT products adhere to a modular, integrated design philosophy, delivering plug-and-play solutions. During equipment assembly, simply mount the complete slip ring assembly and connect input/output cables and pneumatic lines, drastically shortening installation and commissioning cycles. For routine maintenance, diagnostics and replacements target individual components only, ensuring straightforward operations that minimize equipment downtime and safeguard continuous production line operation.

In today's pursuit of Industry 4.0 and smart manufacturing, the integration, reliability, and intelligence of equipment directly determine a company's market competitiveness. JINPAT gas and electricity integrated slip rings, with their innovative integrated design and outstanding performance, have successfully addressed the core challenges in rotating transmission for filling equipment. They represent not merely a component upgrade, but a key technological engine propelling filling processes toward higher precision, greater efficiency, and lower costs. Choosing JINPAT means selecting a powerful and reliable “Chinese core” for your filling equipment, empowering your enterprise to stand out in the fiercely competitive market.
