IP65 Effective Protection! How JINPAT Slip Rings Empower High-Performance Gimbal Systems

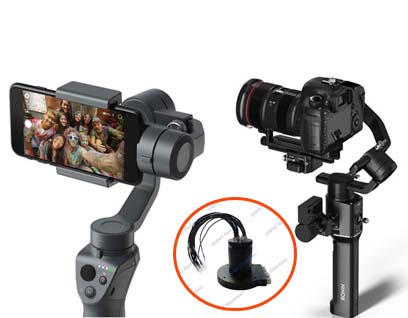

In fields such as security monitoring, fire rescue, geological exploration, and aerial film and television shooting, modern gimbal systems are rapidly developing towards higher precision, higher stability, and greater environmental adaptability. As a key component enabling the gimbal to achieve 360-degree continuous rotation, the performance of the slip ring directly determines the reliability and functional limits of the entire system. Today, we introduce a slip ring that can meet these high-end requirements—the JINPAT LPT hollow shaft slip ring.

First, the LPT hollow shaft slip ring boasts exceptional environmental tolerance, ensuring stable operation of the pan-tilt unit (PTU) under harsh conditions. Its IP65 protection rating effectively resists dust and water spray, protecting the internal electrical connections of the PTU. Simultaneously, it can withstand a peak impact of 40g and operate stably within a wide temperature range of -40℃ to 75℃, easily handling transportation vibrations and extreme weather, guaranteeing the PTU's durability.

Second, its innovative integrated design maximizes functionality within a limited space. This series of slip rings utilizes a hollow shaft structure, providing a passageway for internal cables. Its ingenious design lies in the integrated small-sized electrical slip ring. This compact design significantly increases the number of available loops without substantially increasing the axial dimension, allowing designers to integrate more functional modules into the PTU, greatly enhancing its functional integration and design flexibility.

Finally, its superior signal transmission capabilities are key to adapting to the trend of intelligentization. This slip ring not only transmits conventional power and control signals but also optimizes the transmission performance of high-frequency data signals, enabling stable and efficient transmission of 100Mbps/Gigabit Ethernet signals. This ensures real-time transmission of high-definition video streams and rapid response to control commands, meeting the stringent requirements of modern security, broadcast-grade filming, and other applications for high-quality real-time data transmission.

In summary, the JINPAT LPT hollow shaft slip ring, with its unique characteristics, addresses the core challenges of high-performance gimbals in outdoor, mobile, and high-load scenarios. It is not only crucial for achieving 360° continuous rotation of the gimbal, but also endows it with the powerful potential to operate stably in harsh environments and support more functions, making it an indispensable core component of high-end gimbal systems.
