Fiber Optic Rotary Joints LPFO-02N-A
Model Code:LPFO-02N-A
Joint type:ST/FC/SC/LC,etc.
Operating wavelength:850-1550
Dimension:φ44*111
Insertion loss:＜4dB
Model Code:LPFO-02N-A
Joint type:ST/FC/SC/LC,etc.
Operating wavelength:850-1550
Dimension:φ44*111
Insertion loss:＜4dB
The fiber optic slip ring, also known as a fiber optic rotary joint (FORJ), is engineered to transmit large amounts of data while allowing continuous rotation. By preventing fiber damage and reducing maintenance needs, these devices optimize system efficiency in applications such as radar systems, robotic arms, and offshore wind turbines.
| Specifications | |||
Fiber types |
SM(9/125um) |
Jacket types |
2.0mm(TPU or Kevlar) |
Channel number |
2 |
Connector types |
FC/SC/ST/LC(PC or APC) |
Wavelength range |
SM:1310/1550nm MM:850/1300nm |
Estimated life cycle |
＞100 million revolutions |
Insertion loss |
＜4dB |
Vibration |
MIL-STD-167-1A |
Insertion loss ripple |
＜2dB |
Mechanical shock |
MIL-STD-810G |
Return loss |
SM:≥45dB MM:≥30dB |
IP rating |
IP65 or IP68 |
Crosstalk |
≥50dB | Max Optical power | 23dBm |
| Maximum speed | 200rpm | Package style | Pigtails on both ends |
Working temperature |
-20～+65℃ |
Weight, approx | / |
| Storage temperature | -55~+85℃ | Fiber tpes | / |

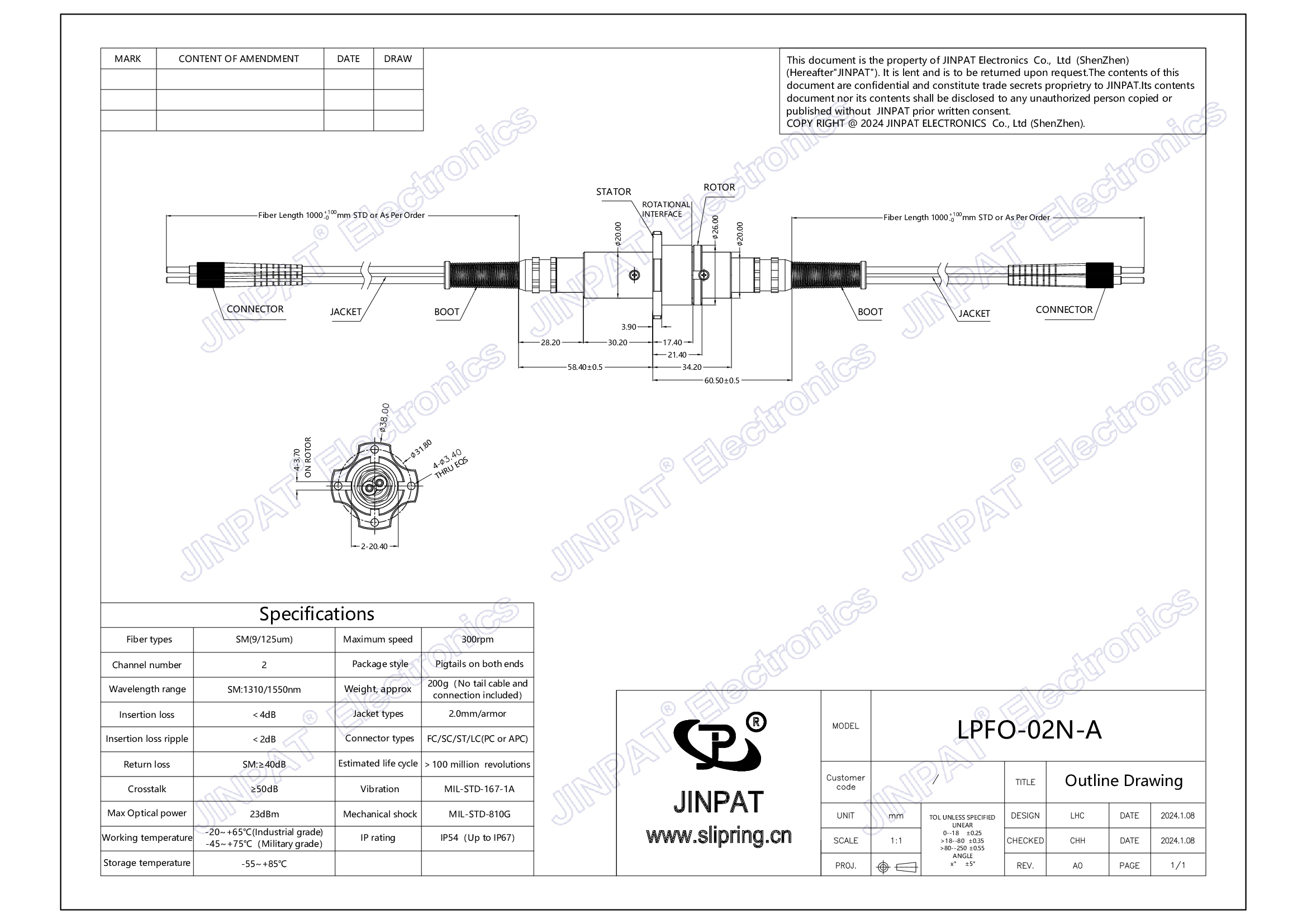

LPFO-02N-A Product Outline Diagram
