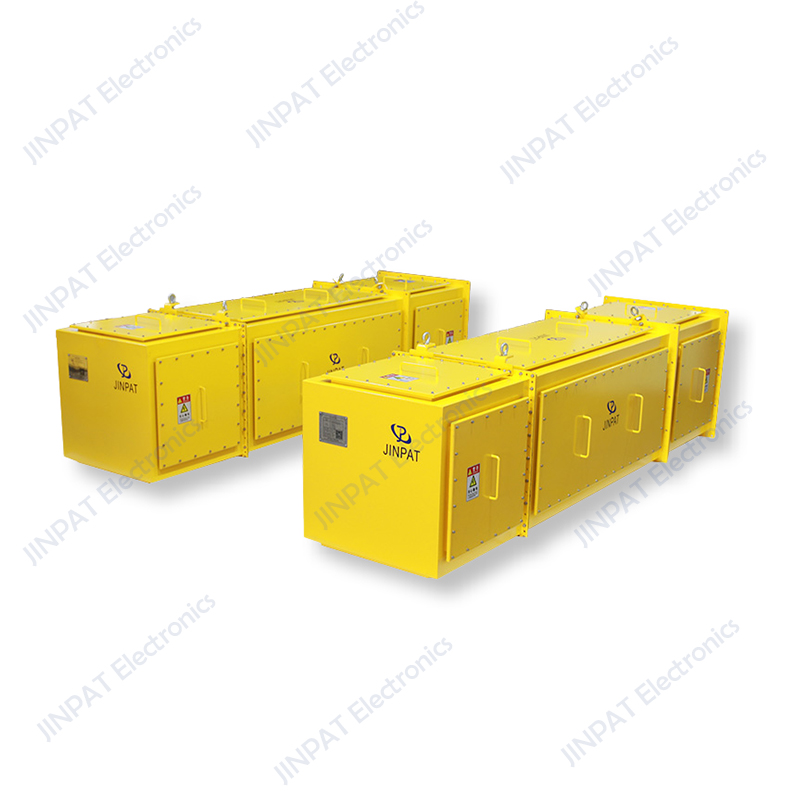

Engineered for heavy-duty cable reels, this LPA000-12400-0454-0827-0423-0813-04S-32FO High Current Slip Ring delivers 400A /54A/27A/23A/13Acurrent and 32-channel fiber optic /32signals transmission in a modular IP66-rated housing (3.55x0.99x1.14m). Supporting 690V/440V AC, its large-scale, service-friendly design ensures reliability in harsh marine environments, combining high power density with easy maintenance for industrial and offshore applications.
Electronic & Electric |
Mechanical | |||
Circuits |
Total |
12+4+8+4+8+4 |
Working Speed |
1~20RPM |
Detail |
12*400A+4*54A+8*27A+4*23A+8*13A+4*signal |
Bore Diameter |
/ |
|
Rating Voltage |
690V/440V AC |
Contact Material |
Copper Graphite/Precious Metal |
|
Dielectric Strength |
2500VAC@60Hz(690V) 1500VAC@50Hz(440V) 300VAC@50Hz(signal) |
Housing |
Q235 |
|
Insulation Resistance |
≥1000MΩ@1000VDC(690V) ≥1000MΩ@500VDC(440V) ≥100MΩ@250VDC(signal) |
Maintainability |
/ |
|
Environment |
Remarks | |||
Working Temperature |
-10°C~+60°C |
Application |
Cable Reels |
|
IP |
IP66 | Other | / | |
OPtical Fiber Parameters | ||||
Circuits |
32 | Insertion Loss | ≤5db | |
Fiber Type |
multimode | Insertion loss variation | ＜2db | |
Working Wavelength |
multimode:850/1300nm |
Connector Type |
LC(multimode） |
|
| Model Code |
|---|
