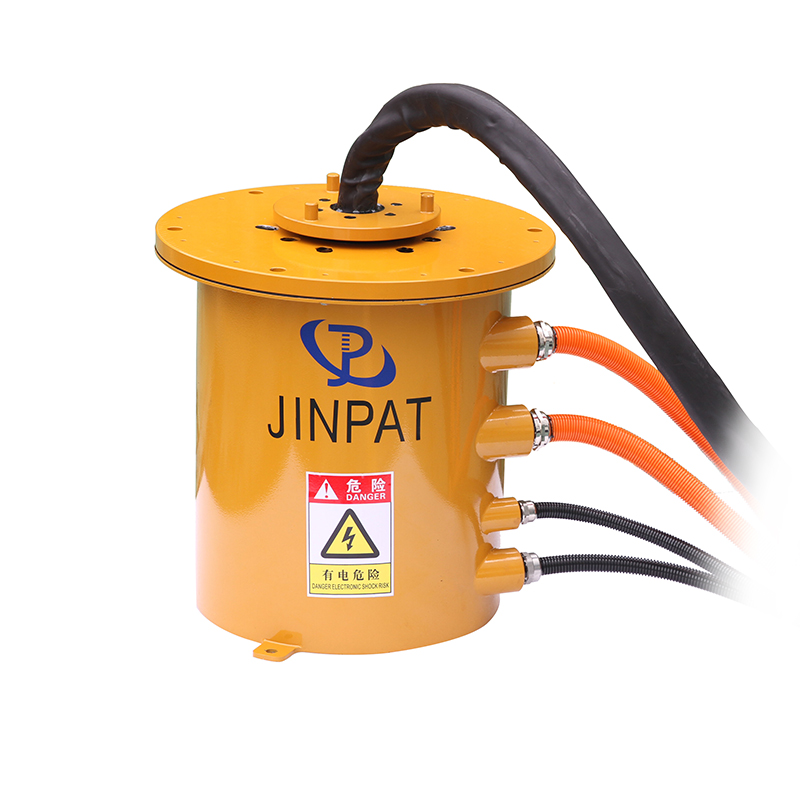

The High LPA000-02600-0440-12S High Current Slip Ring is engineered for rugged outdoor crane applications, featuring IP67 waterproof protection to withstand harsh weather conditions. Its multi-channel design integrates power transmission, standard signals, CAN bus communication, and optional encoder compatibility, ensuring seamless data and power flow for real-time crane control. Built with self-lubricating gold-graphite contact systems, it delivers a maintenance-free lifespan exceeding 10 million rotations, even under continuous high-load operations. Ideal for port logistics, construction sites, and mining equipment, this slip ring guarantees reliability in dust-prone, humid, or extreme-temperature environments.
Electronic & Electric |
Mechanical | |||
Circuits |
Total |
2+4+9+2 |
Working Speed |
1~10RPM |
Detail |
2*600A+4*40A+9*signals+2*CANbus signal |
Bore Diameter |
/ |
|
Rating Voltage |
450V~750VDC/ 24V~32VDC |
Contact Material |
Imported specialized copper graphite |
|
Dielectric Strength |
2500VAC@50Hz(P) 500VAC@50Hz(S) |
Housing |
Q235 |
|
Insulation Resistance |
≥500MΩ@1000VDC(P) ≥300MΩ@300VDC(S) |
Installation |
/ |
|
Environment |
Remarks | |||
Working Temperature |
-30°C~+80°C |
Application |
Construction Machinery- Crane |
|
IP |
IP67 |
Other |
/ |
|
| Model Code |
|---|
