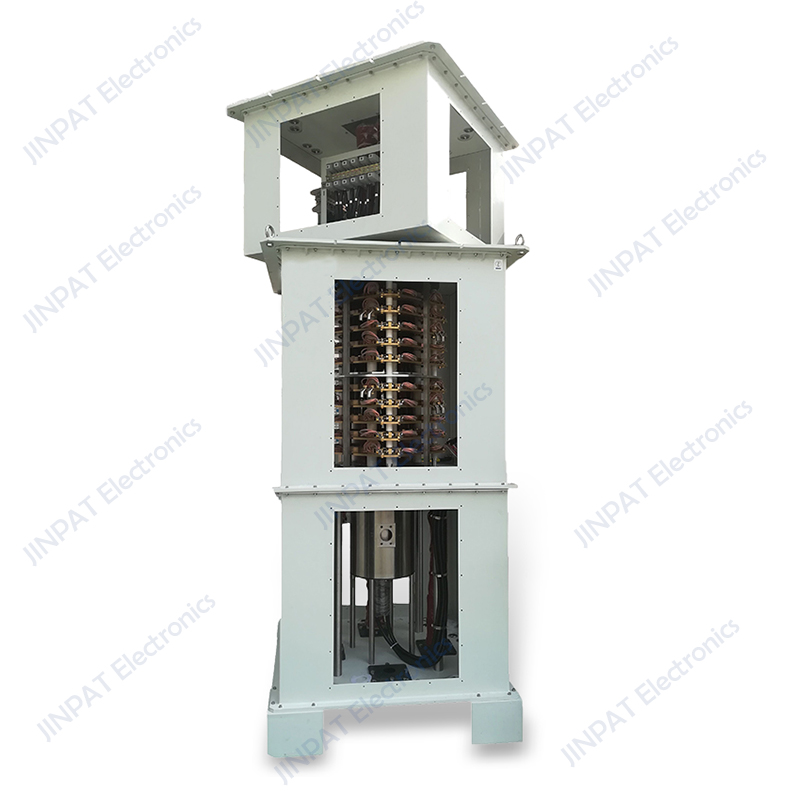

Designed for marine floating cranes, the LPA000-09800-03200-01PE combines 9x800A power channels, 3x200A auxiliary circuits and1×PE pathways in a corrosion-resistant IP54 enclosure. Additionally, multiple hydraulic oil channels can be integrated.Its modular, service-friendly architecture allows rapid component replacement onboard vessels, while dual-shielded fiber-optic channels ensure noise-free signal transmission in electromagnetic-heavy maritime environments. Reinforced against salt spray, UV radiation, and mechanical shocks, it supports cargo handling in coastal ports, inland waterways, and offshore logistics, adhering to strict marine safety standards.
Electronic & Electric |
Mechanical | |||
Circuits |
Total |
13 |
Working Speed |
1~5RPM |
Detail |
9*800A+3*200A+1*PE |
Bore Diameter |
/ |
|
Rating Voltage |
380VAC/250VDC |
Contact Material |
Specialized Copper Graphite |
|
Dielectric Strength |
2000VAC@50Hz(800A) 1000VAC@50Hz(200A) |
Housing |
Q235 |
|
Insulation Resistance |
≥1000MΩ@1000VDC（800A） ≥1000MΩ@500VDC（200A） |
Installation |
Vertical installation |
|
Environment |
Remarks | |||
Working Temperature |
-20°C~+50°C |
Application |
Floating Cranes |
|
IP |
IP54 |
Other |
/ |
|
| Model Code |
|---|
