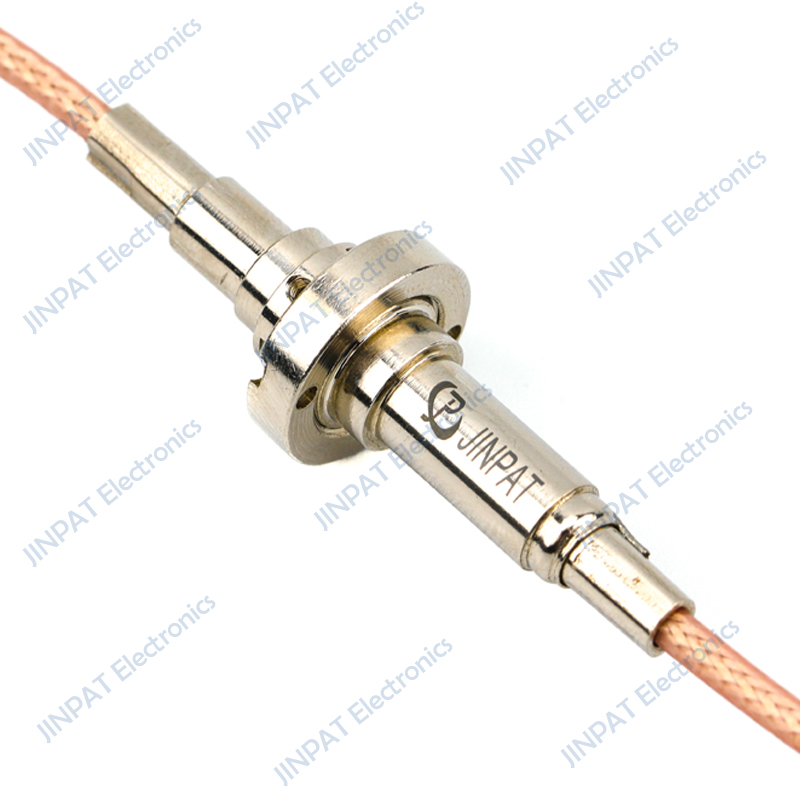

Engineered for seamless HDMI and RF signal transmission, adapting to different impedance requirements. Compatible with the LPC-T series, the LPCC-01A model features a standard coaxial connector, offering a compact build, extended lifespan, and maintenance-free operation. It efficiently handles both analog and high-speed digital signals.
| Specifications | |||
| Interface Tpe | SMA/MCX/SMB/N/other | Axial Load On Interface,Max |
±2N |
Frequenc Range |
DC-3GHz | Radial Load On Interface,Max. | ±2N |
| Impedance | 50Ohm |
Body Material | Nickel-plated |
| Cable Length | 250mm/250mm(or As Per Order) | Insulator Material | PTFE |
| VSWR,Max. | 1.5 |
Marking | Laser marking |
| vswr wow | 0.1 |
Weight,approx | 11.5g |
| Insertion Loss,Max | 0.4dB(Without Cable) 1.4dB@250/250mm | IP Protection Level | IP40 |
| Insertion loss WOW | 0.1dB |
Operation Temperature | -45~+80°C |
| Peak Power,Max. | 1000W | Storage Temperature | -55~+80°C |
| Average Power,Max. | 20W | Humidit(Operation) | 95％ |
| Phase WOW | 1° | Humidit(St) | 95％ |
| Rotating Speed,Max. | 80rpm | Starting Torque | 2Ncm Max |
| Life time,Min. |
2 Million Revolutions | Continuous Rotational Torque | 2Ncm Max |
LPCC-01A Product Outline Diagram
LPCC-02A Product Outline Diagram
| Model Code | Insertion loss | Frequency range | Interface type | Maximum peak power |
|---|---|---|---|---|
| LPHF-04A | 1.0dB | DC-4GHz | SMA-f(50Ω) | 1000W |
| LPHF-03A | 1.0dB | DC-2GHz | SMA-K(50Ω) | 1000w |
| LPHF-01A | 0.25dB@0-6GHz 0.3dB@6-12GHz 0.5dB@12-18GHz | DC-18GHz | SMA-f(50Ω) | 1500W |
