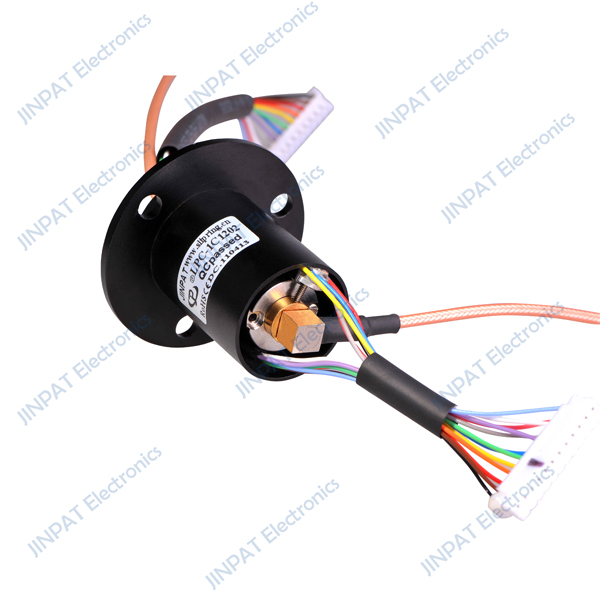

The LPC-1C1202 hybrid slip ring integrates high-frequency and capsule slip ring technologies, offering a 22mm outer diameter and 39.8mm length. Its design is customizable, with optional elbow configurations. Featuring military-grade surface treatment, it ensures exceptional precision, minimal contact resistance, low torque, and extended durability. Ideal for compact rotary systems, it supports weak control signals, SDI signals, and data bus protocols with high reliability.
Electronic & Electric |
Mechanical |
|||
Circuits |
Total |
12CKT |
Working Speed |
0~300rpm |
Detail |
12x2A |
Dynamic Resistance Fluctuation Value |
≤35MΩ |
|
Rating Voltage |
0~240V AC/DC |
Contact Material |
Gold to Gold |
|
Dielectric Strength |
≥500VAC@50Hz(P) ≥100VAC@50Hz(S) |
Housing Material |
Aluminum Alloy |
|
Insulation Resistance |
≥100MΩ@500VDC(P) ≥10MΩ@100VDC(S) |
Lead Wire Length |
Stator:250±5mm Rotor:250±5mm |
|
Environment |
Remarks |
|||
Working Temperature |
-20°C~+60°C |
Application |
/ |
|
Working Humidity |
≤60%RH |
Other |
/ |
|
| IP | IP40 | Note: "P" stands for power, "S" stands for signal. | ||
|
Coaxial Parameter | ||||
|
Connect Model |
/ | Insertion Loss-WOW | ＜1° | |
| Specific Impedance | 50Ω | Frequency range |
0~3GHz | |
| Insertion Loss | ＜2.0dB | Housing Material | Brass | |
| Insertion Loss-WOW | ＜0.1dB | Contact Material | Precious Metal | |
| VSWR | ＜1.6 | Cable size | RG316 | |
| VSWR-WOW | ＜0.1 | Cable Length |
Rotor：250±5mm Stator：250±5mm |
|
LPC-1C1202 Product Outline Diagram

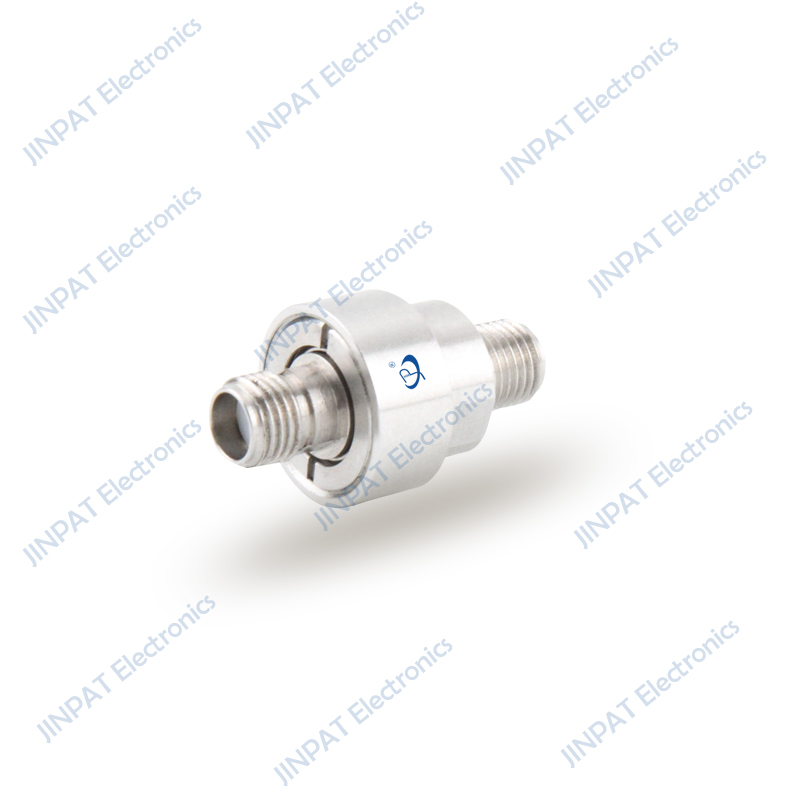

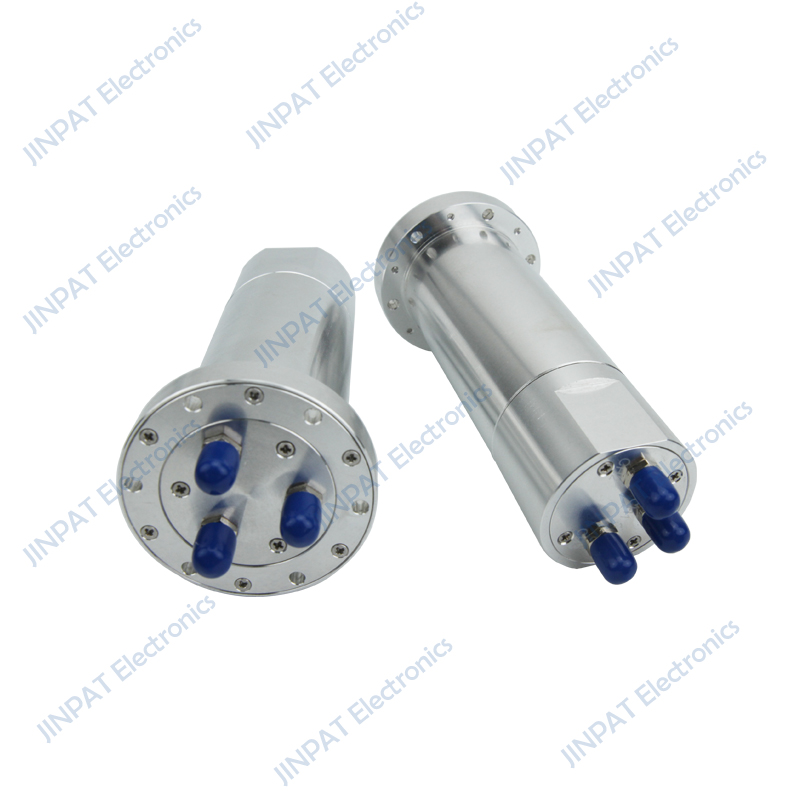

| Model Code | Frequency range | Insertion loss | Interface type | Maximum peak power |
|---|---|---|---|---|
| LPHF-04A | DC-4GHz | 1.0dB | SMA-f(50Ω) | 1000W |
| LPHF-03A | DC-2GHz | 1.0dB | SMA-K(50Ω) | 1000w |
| LPHF-01A | DC-18GHz | 0.25dB@0-6GHz 0.3dB@6-12GHz 0.5dB@12-18GHz | SMA-f(50Ω) | 1500W |
