Cap Slip Rings Standard Series
- Number of Circuits: 06/12/18/24
- Current: 5A(Signal)/10A/15A
- Insulation Resistance: ≥500MΩ@500VDC
- Wire: Length rotor/stator：300mm
- Voltage: 240VAC/DC

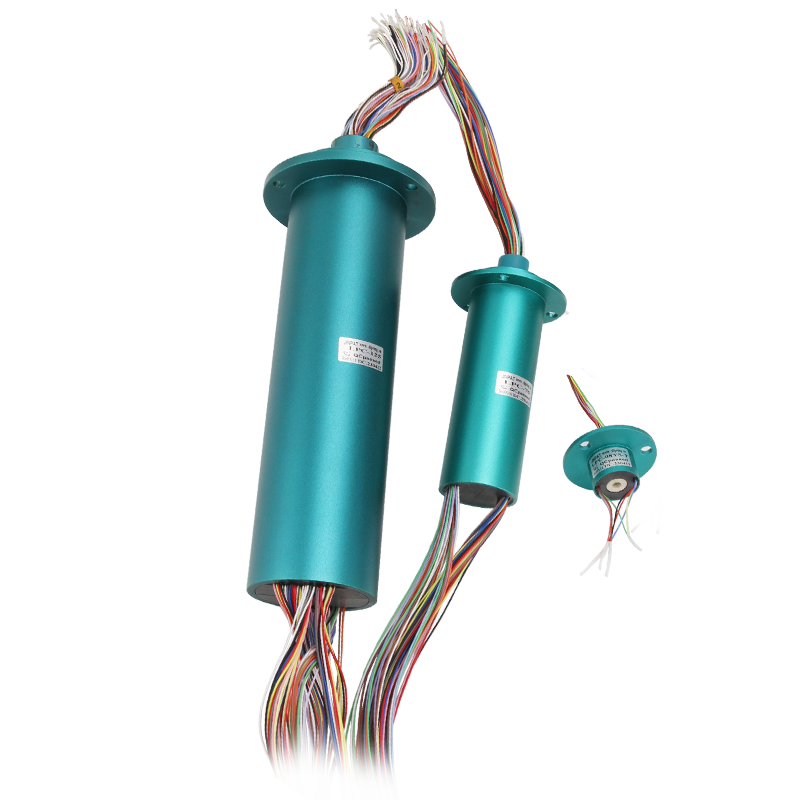

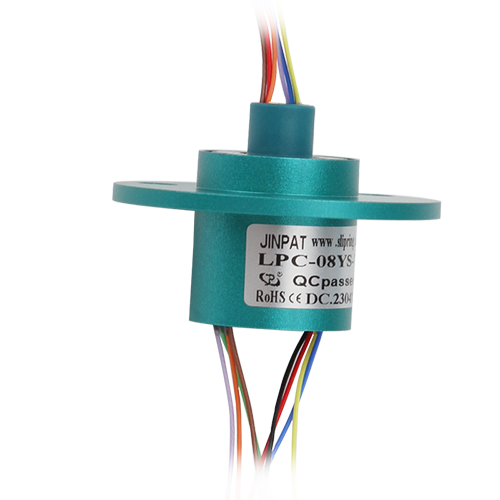

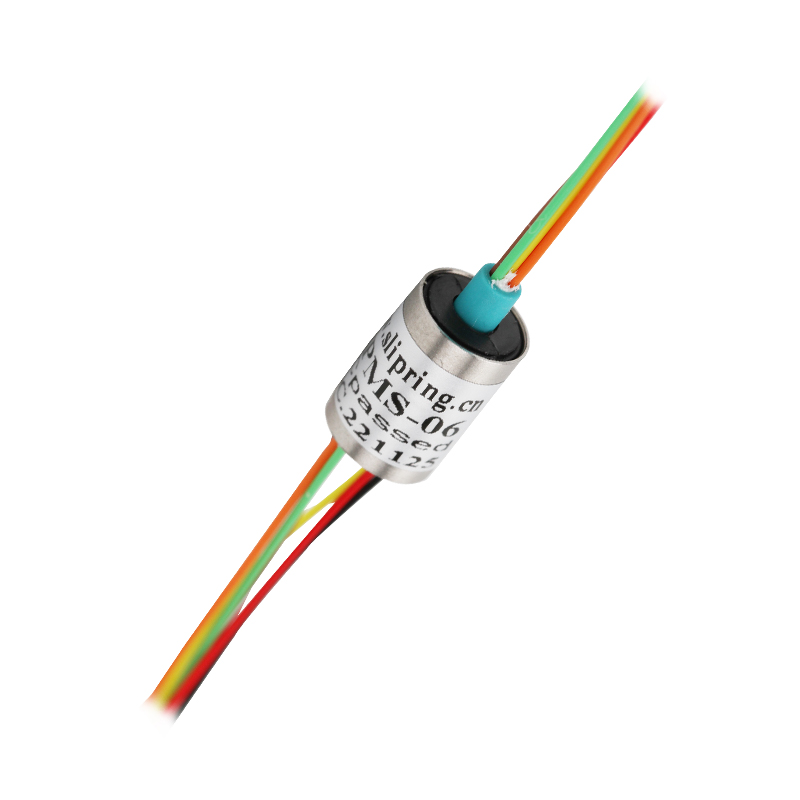

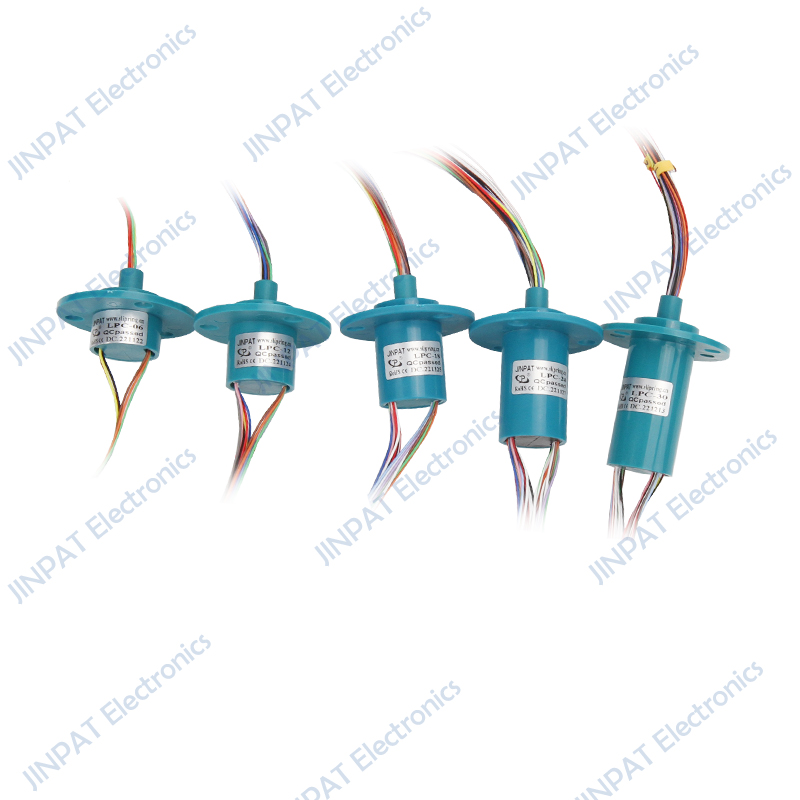

LPC cap slip ring O.D. 22~54mm, channel up to 125 ways, adopting domestic high standard surface treatment process, high design precision, small appearance, easy installation. The contacts are gold-to-gold to ensure extremely low contact resistance and long working life, especially suitable for small and medium-sized systems to transmit weak control signals.
Slip rings are available in different electrical path combinations, such as video, control, sensing, sealing grade, industrial Ethernet, etc.
Slip Rings are available in a wide range of electrical paths, such as video, control, sensing, sealing grade, industrial Ethernet, and so on.
Typical applications: security monitoring, camera, robotics, test equipment, rotary tables and automation equipment.
If you have any special requirements, please contact us immediately so that our sales engineers can recommend slip ring models or design customized slip rings for you.
| Model Code | Voltage | Rotating Speed (rpm) | Current (A) | Outer Diameter(mm) | Circuits | Length(mm) |
|---|---|---|---|---|---|---|
| LPC-125 | 0~240V AC/DC | 0~300rpm | 2A | Φ54 | 125 | 200/216 |
| LPC-76 | 0~240V AC/DC | 300rpm | 2A | Φ35.5 | 76 | 105.7/118.1 |
| LPC-56 | 0~240V AC/DC | 300rpm | 2A | Φ25 | 56 | 63/85.7/95.2 |
| LPC-36 | 0~240V AC/DC | 300rpm | 2A | Φ22/Φ24.8 | 36 | 57.3/66.6/75.7 |
| LPC-30 | 0~240V AC/DC | 300rpm | 2A | Φ22 | 30 | 49.6/58.9/69.5 |
| LPC-24 | 0~240V AC/DC | 300rpm | 2A | Φ22/Φ24.8 | 24 | 42.3/51.6/62.9 |
| LPC-18 | 0~240V AC/DC | 0~300rpm | 2A | Φ22 | 18 | 32.9/42.2 |
| LPC-15YS | 0~240V AC/DC | 1000rpm | 2A | Φ22 | 15 | 43.7 |
| LPC-12 | 0~240V AC/DC | 0~300rpm | 2A | Φ22/Φ24.8 | 12 | 26.4/35.7/47 |
| LPC-08YS | 0~240V AC/DC | 0~300rpm | 2A | Φ22 | 8 | 30 |
| LPC-06 | 0~240V AC/DC | 300rpm | 2A | Φ22/Φ24.8 | 6 | 18.6/27.9/39.7 |
| LPM-04 | 0~110V AC/DC | 0~300rpm | 2A | Φ12.5 | 4 | 15.6/18 |
| LPM-06 | 0~110V AC/DC | 300rpm | 2A | Φ12.5 | 6 | 18.2/20.6 |
| LPM-12 | 0~110V AC/DC | 0~300rpm | 2A | Φ12.5/Φ12.7 | 12 | 24/25.2/26.5/27.6/35 |
| LPM-18 | 0~110V AC/DC | 300rpm | 2A | Φ12.8 | 18 | 23.5/27.5 |
| LPM-24 | 0~110V AC/DC | 300rpm | 2A | Φ15.5 | 24 | 34/40.4 |
| LPM-30 | 0~110V AC/DC | 300rpm | 2A | Φ16 | 30 | 37/44.25 |
| LPMS-04 | 0~48VAC/DC | 0~300rpm | 2A | Φ7.9/Φ8.5 | 4 | 14.1 |
| LPMS-05 | 0~48VAC/DC | 0~300rpm | 2A | Φ5.5/Φ6.5 | 5 | 10.6 |
| LPMS-06 | 0~48VAC/DC | 0~300rpm | 2A | Φ7.9/Φ8.5 | 5 | 14.2 |
| LPMS-08 | 0~48VAC/DC | 0~300rpm | 2A | Φ5.5/Φ8.4 | 8 | 139/14.5 |
| LPMS-10 | 0~48VAC/DC | 0~300rpm | 2A | Φ6.8/Φ7.4 | 10 | 15.6 |
| LPMS-12 | 0~48VAC/DC | 0~300rpm | 2A | Φ6.5/Φ7.6 | 12 | 19.4 |
