Separate Slip Rings
- Number of Circuits: 2~15 circuits
- Current: 1~2A/Signal
- Insulation Resistance: ≥100MΩ@500VDC
- Voltage: 240VAC/DC
- Dielectric Strength: 500VAC@50Hz

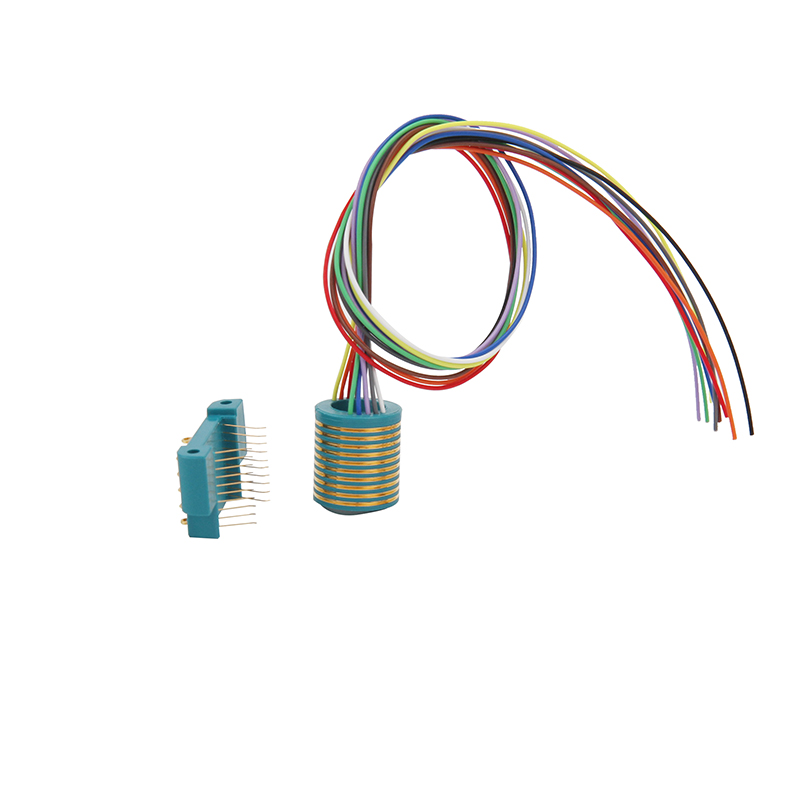

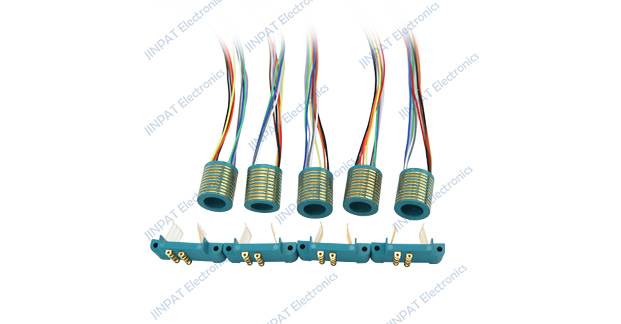

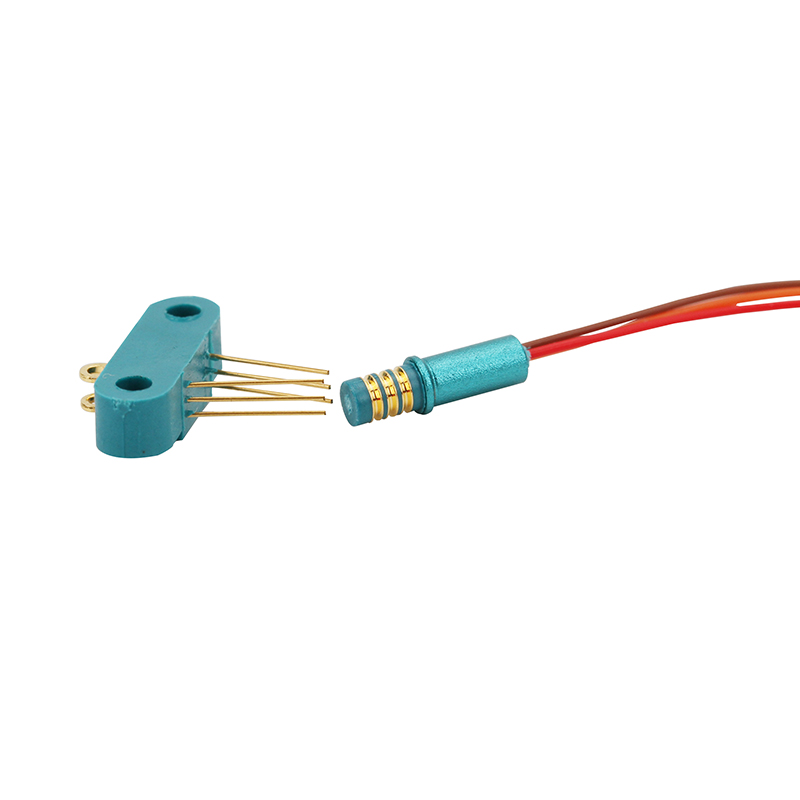

LPS split slip ring consists of separated rotor and contact brush combination, its rotor part can be with through-hole for threading shaft, which can better match the space limitation and installation demand in customer's system, meanwhile, we can customize all kinds of similar split slip ring according to your specific demand. Separate stator and rotor, pin instead of wire contact, high current transmission 2-15 way rotor and contact brush combination, center through-hole (9.55mm/60mm) and no through-hole for selection of slip rings.
Typical applications: Instrumentation, drones, aerial photography, medical equipment If you have other needs. Please contact us so that our sales engineers can recommend a slip ring for you.
| Model Code | Voltage | Rotating Speed (rpm) | Current (A) | No. of Power Circuits | OD × Length (mm) |
|---|---|---|---|---|---|
| LPS-15C | 0~240V AC/DC | 100rpm | 2A | 15 | Stator：ø14.73*27.6 Rotor：30*5.5*27.6 |
| LPS-12C | 0~240V AC/DC | 0~100rpm | 2A | 12 | Stator：ø14.7*23 Rotor：30*5.5*23 |
| LPS-10C | 0~240V AC/DC | 100rpm | 2A | 10 | Stator：ø15.73*17.3 Rotor：30*5.5*17.3 |
| LPS-08C | 0~240V AC/DC | 0~100rpm | 2A | 8 | Stator ：ø14.5*15 Rotor：30.3*5.5*15 |
| LPS-06C | 0~240V AC/DC | 100rpm | 2A | 6 | Statorø14.73*13.2 Rotor：30.3*8.2*13.2 |
| LPS-04C | 0~240V AC/DC | 0~100rpm | 1A | 4 | Stator：ø4*10 Rotor：16.8*6*4.8 |
| LPS-03C | 0~240V AC/DC | 100rpm | 1A | 3 | Stator：ø3.8*11.43 Rotor：15.9*4.8*4.8 |
