Pin Connection Slip Rings
- Number of Circuits: 2~8 circuits
- Current: 5A/SignalInsulation Resistance: ≥1000MΩ@500VDC
- Voltage: 240VAC/DC
- Dielectric Strength: ≥500VAC@50Hz
JINPAT Slip Rings are designed with modular blade structure, abandoning the traditional cable wiring and realising plug-and-play access, which significantly improves the installation efficiency and system integration. With compact structure and clear interface, it is widely used in automation equipment, test equipment, medical equipment, precision platforms and other occasions that require high installation convenience and signal stability.
Product Features:
◎Pin instead of wire contact
Transmit current and signal
Smooth operation
Low contact resistance
◎Easy to install
Options available:
◎ Rotation speed / number of circuits / current / case material
Typical applications:
Wind power generation
Rotating work disks
Cable reels and hot rollers
In-line equipment
| Model Code | Voltage | Rotating Speed (rpm) | Current (A) | No. of Power Circuits | OD × Length (mm) |
|---|---|---|---|---|---|
| LPR-8 | 0~240V AC/DC | 0~300rpm | 20A+5A | 8 | ø45*64.5 |
| LPR-6 | 0~240V AC/DC | 0~300rpm | 20A | 6 | ø45*64.5 |

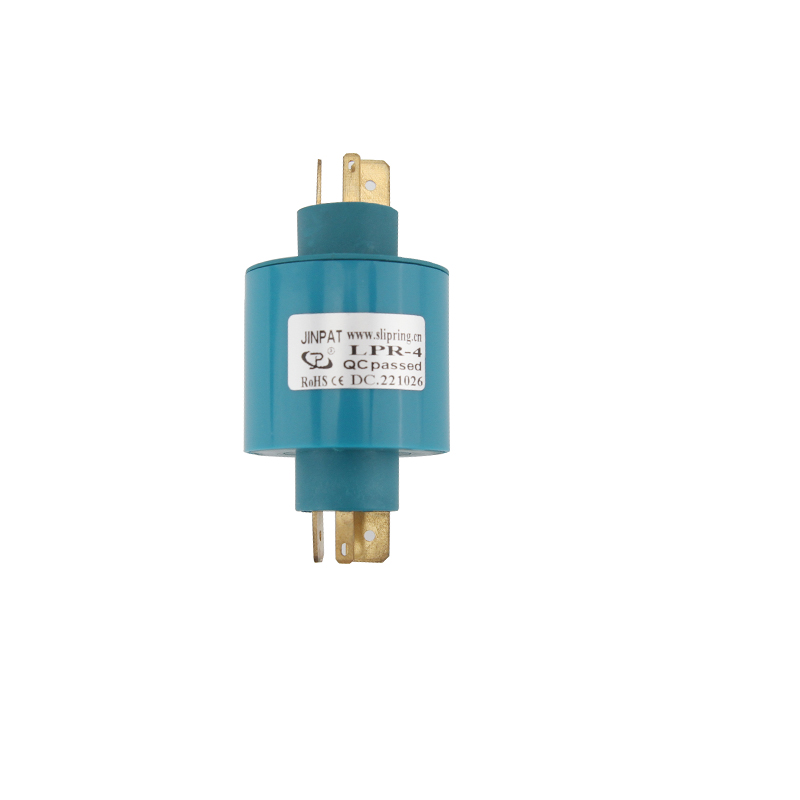

| LPR-4 | 0~240V AC/DC | 0~300rpm | 15A+5A | 4 | ø32*28.6 |

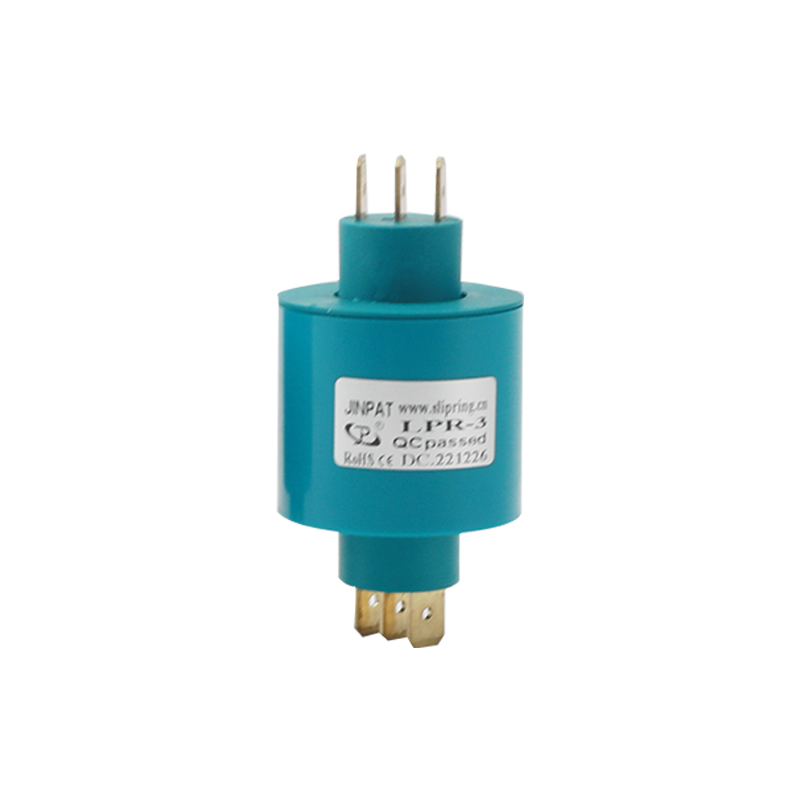

| LPR-3 | 0~240V AC/DC | 0~300rpm | 15A | 3 | ø32*28.6 |

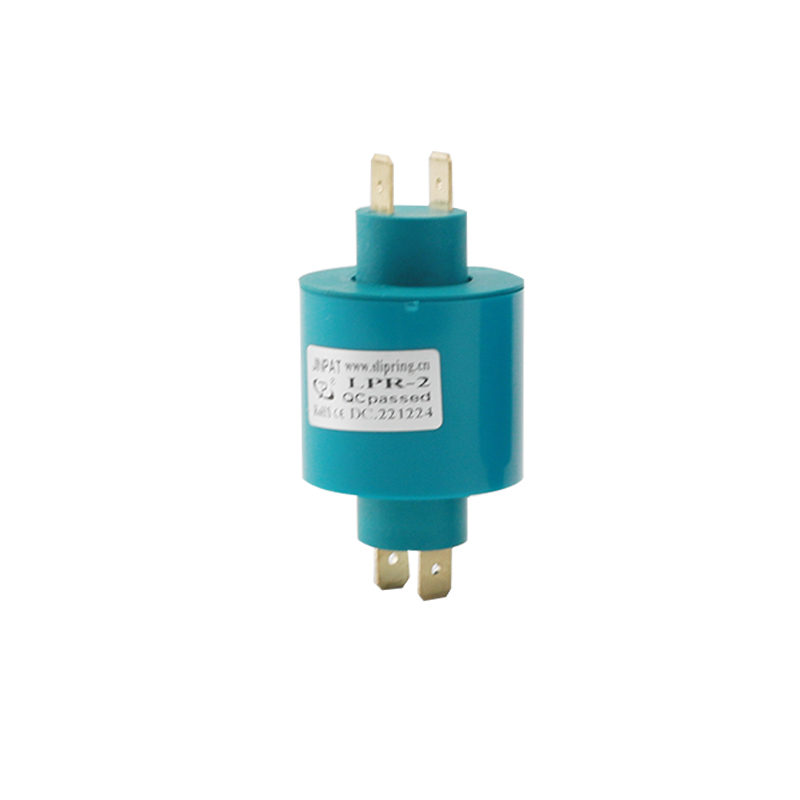

| LPR-2 | 0~240V AC/DC | 0~100rpm | 15A | 2 | ø32*28.6 |
