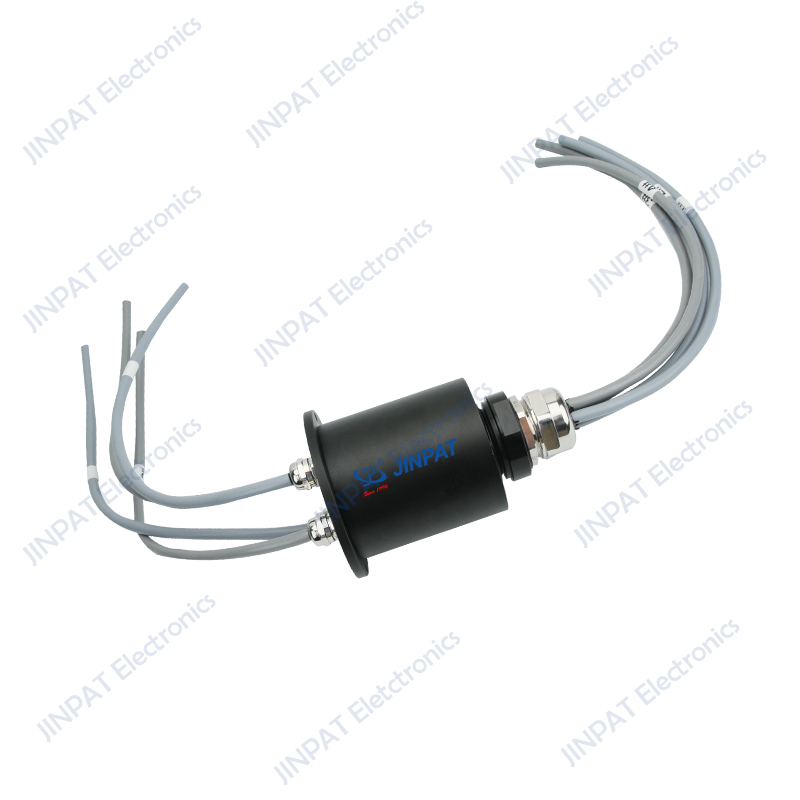

IP69 protection grade is the highest protection degree of the slip ring. The slip ring that reaches this protection level can work under water for a long time. JINPAT Electronics has developed a number of IP69protection level slip rings.
The IP69 slip ring must have very strong hardness and superior sealing for the purpose of working normally for hundreds of meters under water. The slip ring adopts a stainless steel outer casing, and waterproof rubber is attached to the outer openings, and the metal and waterproof PG joints are used for the rotor and stator terminals. In addition, due to the relatively large diameter of the wire used, a large amount of waterproof glue is attached to the joint of the PG joint.
Electronic & Electric |
Mechanical | |||
Circuits |
Total |
/ |
Working Speed |
0~5rpm |
Detail |
4*20A/2*CAN BUS SIGNAL |
Inner Diameter |
/ |
|
Rating Voltage |
12V |
Contact Material |
Precious Metals |
|
Dielectric Strength |
≥100VAC@50Hz |
Shell Material |
Aluminum alloy |
|
Insulation Resistance |
≥100MΩ@100VDC |
Lead Wire Length |
Stator:300mm Rotor:250mm |
|
Environment |
Remarks | |||
Working Temperature |
-20°C~+60°C |
Dynamic Contact Resistance |
≤70mΩ |
|
Working Humidity |
≤60%RH |
Life Span |
Customizable |
|
IP |
IP69 |
/ |
||
