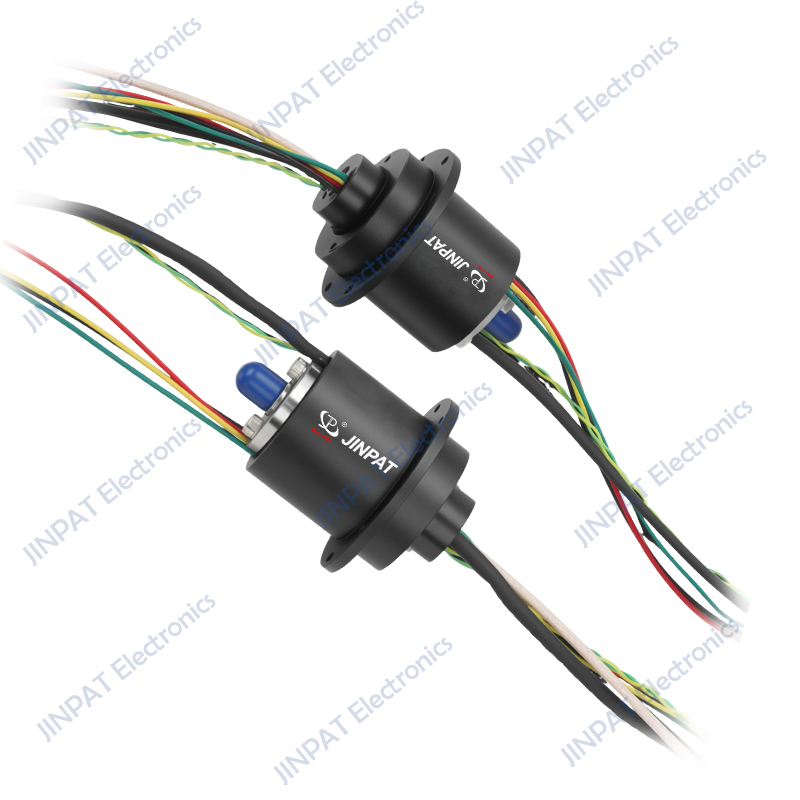

RF-Electrical Integrated Slip Rings
JINPAT's RF-Electrical Integrated Slip Rings revolutionize rotational connectivity by combining high-frequency RF transmission (up to 67 GHz) with power and electrical signal channels in a single compact unit. These hybrid devices support Ethernet, CAN bus, and various digital protocols, enabling reliable, all-in-one transmission of data, RF signals, and power through a unified rotating interface.
Featuring ultra-low insertion loss (<0.4 dB @ 18 GHz), excellent VSWR (<1.5 @ 18 GHz), and advanced multi-layer EMI shielding, these slip rings maintain stable, interference-free performance under demanding conditions. Constructed with precious metal contacts and rigorously tested for extreme temperatures and durability, they meet stringent requirements for aerospace, defense, radar, and high-end industrial applications.
Customizable with over 12 connector interfaces (including SMA, N, and BNC), JINPAT offers tailored solutions for UAVs, robotic systems, test equipment, and other advanced platforms. Accelerate your integration process with flexible, application-specific designs supported by expert technical assistance.
| Model Code | No. of RF Channels | Frequency Range | No. of Power Circuits | Voltage | Outer Diameter(mm) | Supported Signal Types | Customization Options |
|---|---|---|---|---|---|---|---|
| LPC-1C1202 | 1 | DC-6GHz | 12 | 0~220V | ∅24.8 | USB 2.0; Fast Ethernet、Gigabit Ethernet; HD-SDI; Common Signals | 1.Customizable mechanical dimensions |
| LPC-1C3602 | 1 | DC-6GHz | 36 | 0~220V | ∅24.8 | USB 2.0; Fast Ethernet、Gigabit Ethernet; HD-SDI; Common Signals | 2.Configurable power and signal channels |
| LPT000-0308-0204-12S-HF01 | 1 | DC-3GHz | 5 | 0-380V | ∅86 | USB 2.0; Fast Ethernet; Gigabit Ethernet; Common Signals | 3.Full-frequency compatibility up to DC–67GHz RF |
| LPT000-0301-01E3-HF01 | 1 | DC-6GHz | 3 | 0-380V | ∅56 | USB 2.0; Fast Ethernet; Gigabit Ethernet; Common Signals | 4.Integration with pneumatic and hydraulic rotary unions |
| LPT000-0205-04S-01E3-HF02 | 2 | CH1:DC-4.5GHz CH2:DC-4.5GHz | 2 | 0-380V | ∅99 | Fast Ethernet; Gigabit Ethernet; Common Signals | 5.Customizable IP protection level |
| LPT000-0305-01E2-01E3-HF02 | 2 | CH1:DC-4.5GHz CH2:DC-4.5GHz | 3 | 0-380V | ∅85 | USB 2.0; Gigabit Ethernet; Common Signals | 6.Optional housing materials (aluminum alloy, stainless steel, etc.) |
| LPT000-0430-19S-HF03 | 3 | DC-4GHz (per channel) | 4 | 0-380V | ∅160 | Fast Ethernet , Gigabit Ethernet , Common Signals | 7.Mixed high-speed data transmission |
| LPT000-47S-3E2-HF03 | 3 | DC-4GHz (per channel) | 0 | 0-380V | ∅248 | Fast Ethernet , Gigabit Ethernet , Common Signals | supported, including: •USB 2.0 •Analog HD video (CVBS/CVI/AHD/TVI/XVI; PAL/NTSC/SECAM) |
| LPT000-0803-10S-02E2-HF04 | 4 | DC-4GHz (per channel) | 8 | 0-380V | ∅138 | Fast Ethernet; Gigabit Ethernet; Common Signals | •Ethernet slip rings (Fast/Gigabit/Industrial Ethernet) |
| LPT000-0612-0510-41S-HF04 | 4 | DC-4GHz (per channel) | 6 | 0-380V | ∅150 | Fast Ethernet , Gigabit Ethernet , Common Signals | •Fieldbus slip rings (RS422, RS485, Profibus, Modbus, DeviceNet, CC-Link, CAN/CANbus, InterBus) |
| LPT000-3602-HF05 | 5 | DC-5.25GHz (per channel) | 36 | 0-380V | / | Fast Ethernet; Gigabit Ethernet; Common Signals | •Serial communication (I2C, BISS, SSI, SPI, UART, RS232, TTL, MIL-STD-1553B, IEEE 1394b) •RTD signals |
| LPT000-1010-06E2-HF06 | 6 | DC-4GHz (per channel) | 10 | 0-380V | / | Fast Ethernet; Gigabit Ethernet; Common Signals | •Thermocouple signals •Sensor signals •Encoder signals |
