LPT Through Bore - Standard
- Current: 5A~15A
- Outer diameter(mm): Φ53~Φ298
- Voltage: 240VAC/DC~380VAC/DC~
- Circuits: 6~24Circuits
- Insulation Resistance: ≥500MΩ@500VDC
- Wire Length rotor/stator：300mm

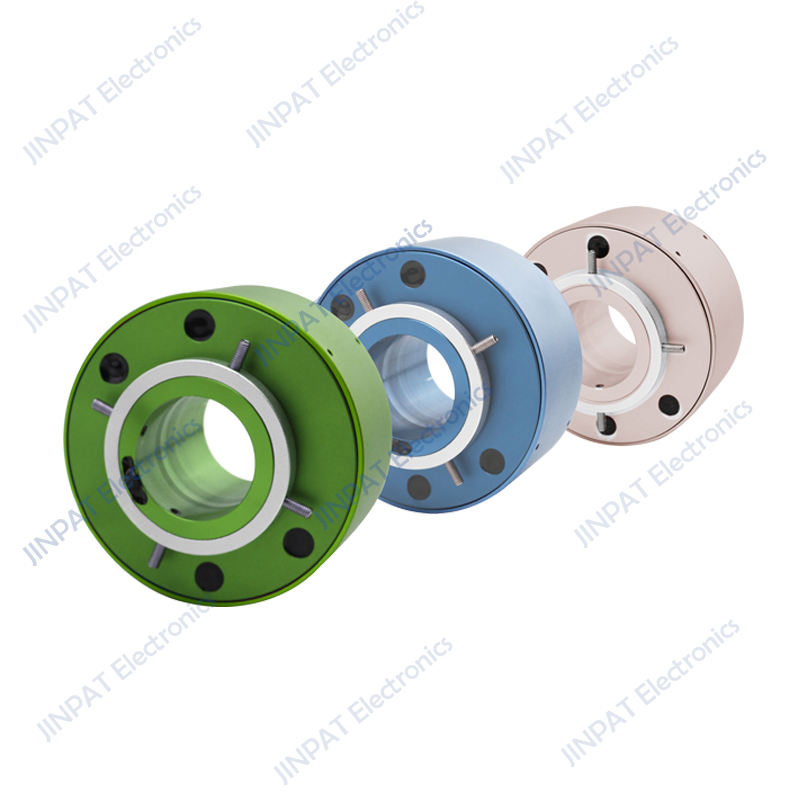

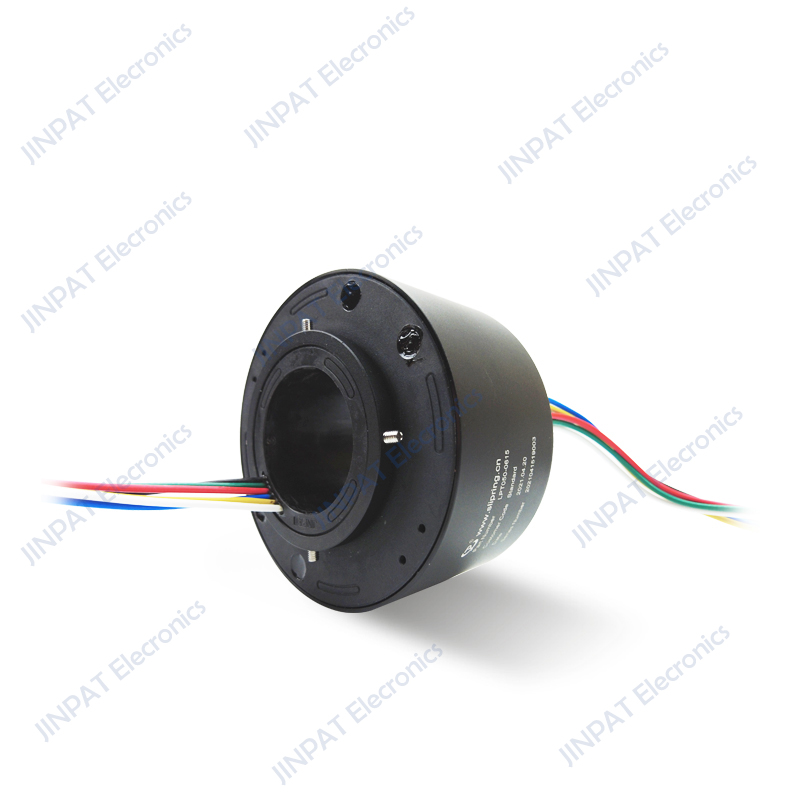

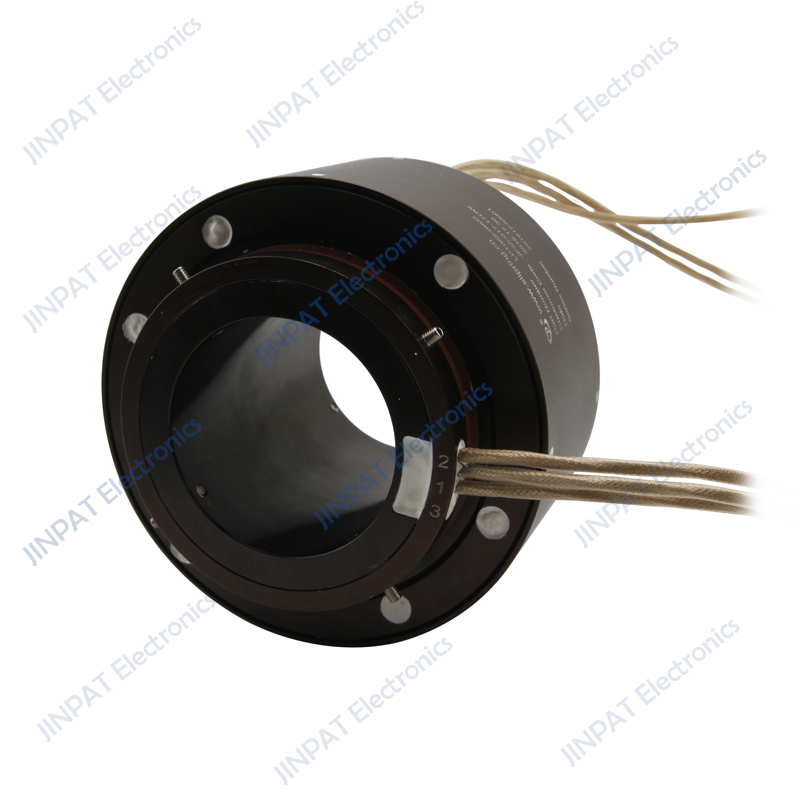

The LPT series through bore slip ring is a hollow slip ring (the central hole can pass through the transmission shaft, gas and liquid channels; it can also integrate various joints such as high frequency, optical fiber, encoder, waveguide, gas and liquid, etc.) and adopts advanced cluster brush type Multi-point contact ensures reliable contact under low friction. The center hole is optional from 0 to 1000mm, the current is optional from milliamps to 5000 amps, and the voltage is up to 1000 volts, which can meet your different transmission solutions.
| Model Code | Voltage | Rotating Speed (rpm) | Current (A) | Outer Diameter(mm) | Circuits | Inner Diameter (mm) |
|---|---|---|---|---|---|---|
| LPT-180 | 240VAC/DC | 300 | 5A/ Signal-15A | Φ298 | 6~24 | Φ180 |
| LPT-150 | 240VAC/DC | 300 | 5A/ Signal-15A | Φ250 | 6~24 | Φ150 |
| LPT-120 | 240VAC/DC | 300 | 5A/ Signal-15A | Φ207 | 6~24 | Φ120 |
| LPT-096 | 240VAC/DC | 300 | 5A/ Signal-15A | Φ185 | 6~24 | Φ96 |
| LPT-080 | 240VAC/DC | 300 | 5A/ Signal-15A | Φ160 | 6~24 | Φ80 |
| LPT-070 | 240VAC/DC | 300 | 5A/ Signal-15A | Φ135 | 6~24 | Φ70 |
| LPT-060 | 240VAC/DC | 300 | 5A/ Signal-15A | Φ135 | 6~24 | Φ60 |
| LPT-050 | 240VAC/DC | 300 | 5A/ Signal-15A | Φ119 | 6~24 | Φ50 |
| LPT-038 | 240VAC/DC-380VAC/DC | 300 | 5A/ Signal-15A | Φ99 | 6~24 | Φ38.1 |
| LPT-025 | 240VAC/DC-380VAC/DC | 300 | 5A/ Signal-15A | Φ86 | 6~24 | Φ25.4 |

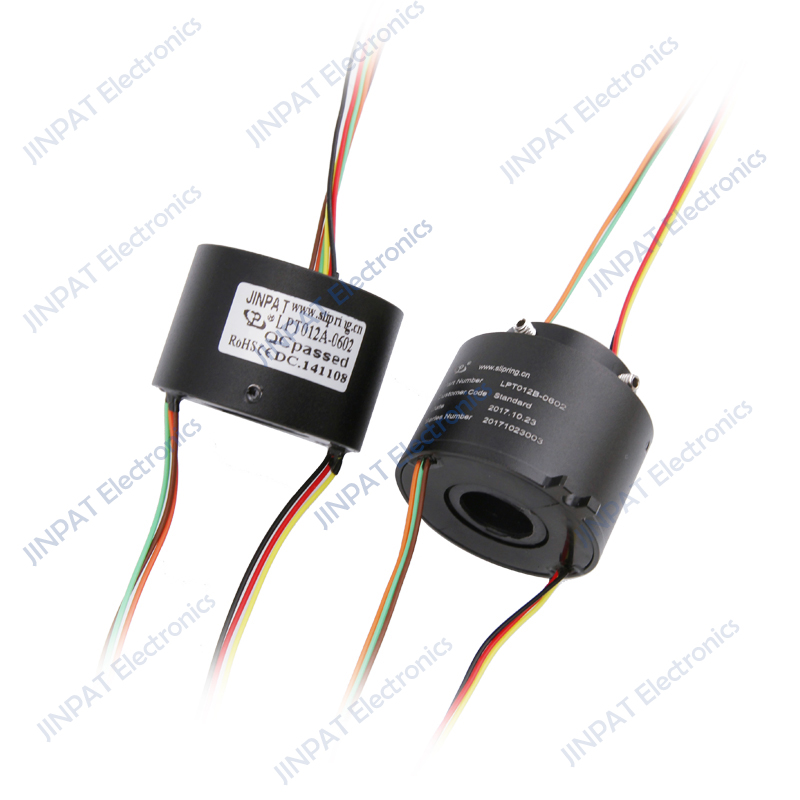

| LPT-012 | 240VAC/DC | 300 | 5A/Signal-10A | Φ53-Φ56 | 6~24 | Φ12.7 |
