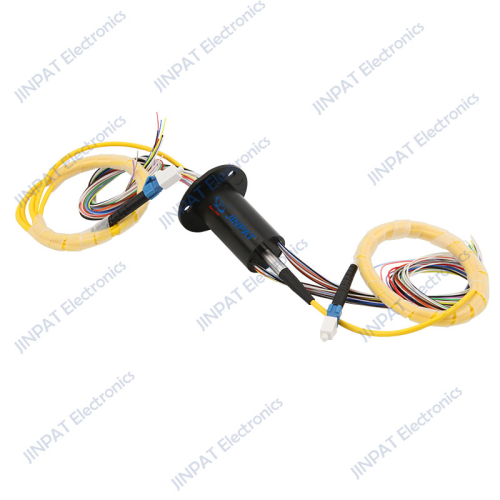

Electro‑Optical Rotary Joints The new generation of electro-optical rotary joints delivers precision, reliability, and efficiency. JINPTA Electronics

Features:

◎ All-in-One Signal Transmission: Innovatively integrates single-mode/multi-mode fiber optics, high-current power, and control signals in an ultra-compact module. Breaks through the limitations of traditional separated designs to achieve simultaneous 360° uninterrupted transmission of optical, electrical, and control signals.

◎ Absolute Anti-Interference Assurance: Utilizes a patented isolation structure to achieve complete physical separation between optical and electrical channels. Provides over 60 dB EMI suppression, ensuring pure and lossless data transmission even in complex environments.

◎ Military-Grade Reliability: Features gold-alloy contacts, optional IP68 protection, resistance to 10G vibration, and passes rigorous salt spray tests. Offers long-term stable operation exceeding 5 million rotations, fearless in extreme environmental challenges.

◎ Ultra-Compact Modular Design: Ingenious layout significantly saves equipment space, enabling easy integration into various size-constrained applications. Modular architecture simplifies maintenance and customization.

◎ Industry-Tailored Customization: Specifically engineered for demanding applications including stabilized gimbals, medical imaging systems, high-definition surveillance platforms, and remote operation systems, providing optimized solutions for specialized requirements.

Electro‑Optical Rotary Joints

JINPAT Electro‑Optical Rotary Joints combine fiber optic rotary joints (FORJs) with electrical slip ring channels to enable simultaneous transmission of optical signals, power, and control signals through a single rotating interface. Designed for compact integration and long-term durability, they deliver high-speed, interference-free performance in demanding environments. These hybrid systems are ideal for UAV gimbals, HD video systems, medical devices, and remote sensing platforms, with tailored solutions across more than 20 industries.

Customization & Services
Tailor your slip ring with specific signal types, channel counts, protection levels, or mounting styles. 3D CAD models and technical support are available upon request.

Can’t find a suitable model? Contact us for 24/7 technical support .

For detailed product specifications , refer to product datasheets or contact our sales team.

Optimized for global markets – Precision-engineered for reliability in mission-critical applications.
