Fiber Optic Rotary Joints

No contact and friction, long life, up to 10 million rpm (more than 100 milion rpm for signal channel )
Can combine with multiple signals such as video, series, and Ethemet signal, etc.
Wse optical fiber to transmit information, no leakage, no electromagnetic interference; can transmit tens of hundreds of kilometers of networking applications over long distances
The transmision bandwidth is much larger than the electrical connector, and it can be used to double the bandvidth with the wavelength division multiplexer.
Small in volume and light in weight that is easy to integrate with electric slip ring, and system is easy to upgrade and change
Providing the world's smallest single-channel fiber optic rotary joint, as well as double-channels, four-channels. ten-channel or even more cnannel for your opton
Providing photoelectric integrated rotary joint

JINPAT Slip Pings, connecting infinite possibilities.

Specialized in rotary transmission for 30 years +, stable and reliable for every revolution.

JINPAT fiber optic rotary joints (FORJ) are designed for high-precision, high-speed optical signal transmission with minimal loss and interference. Supporting both single-mode and multi-mode fiber, they ensure reliable data transfer in demanding applications such as radar systems, satellite communication, high-definition video transmission, medical devices, and industrial automation. Featuring low insertion loss, high return loss, and multi-channel options, JINPAT FORJs provide exceptional performance in harsh environments. Customizable designs are available to meet specific operational requirements, delivering optimal efficiency and reliability.

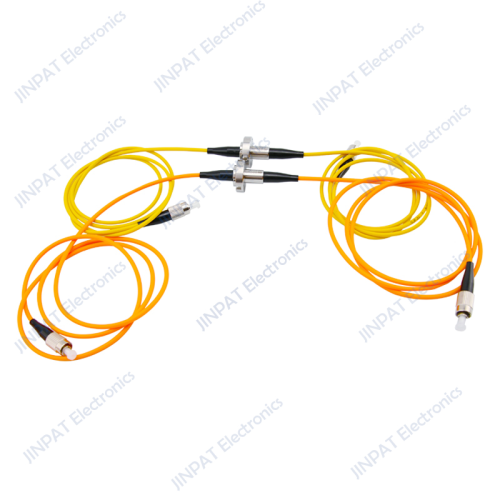

Fiber Optic Rotary Joints LPFO-01~07

JINPAT fiber optic rotary joints ensure lossless, high-speed data transmission across rotating interfaces, protecting fibers from mechanical stress while maintaining signal integrity.

Number of Circuits: 1~40（optional）
Wavelength range: 650-1650nm （ customized）
Insertion loss: Single-Channel＜2dB multi-channel＜4dB 8-40Channel ＜5dB
Insertion loss ripple: Single-Channel＜0.5dB multi-channel＜2dB
Return Loss ＞40dB

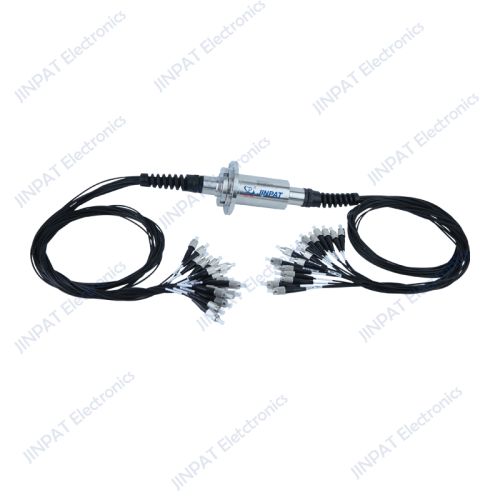

Fiber Optic Rotary Joints LPFO-19B

The LPFO-19B fiber optic slip ring ensures stable signal and energy transmission, improving efficiency and safety in cable drum operations.

Model Code：LPFO-19B
Joint type：ST/FC/SC/LC,etc
Operating wavelength:850-1550
Dimension:/
Insertion loss:≤5dB

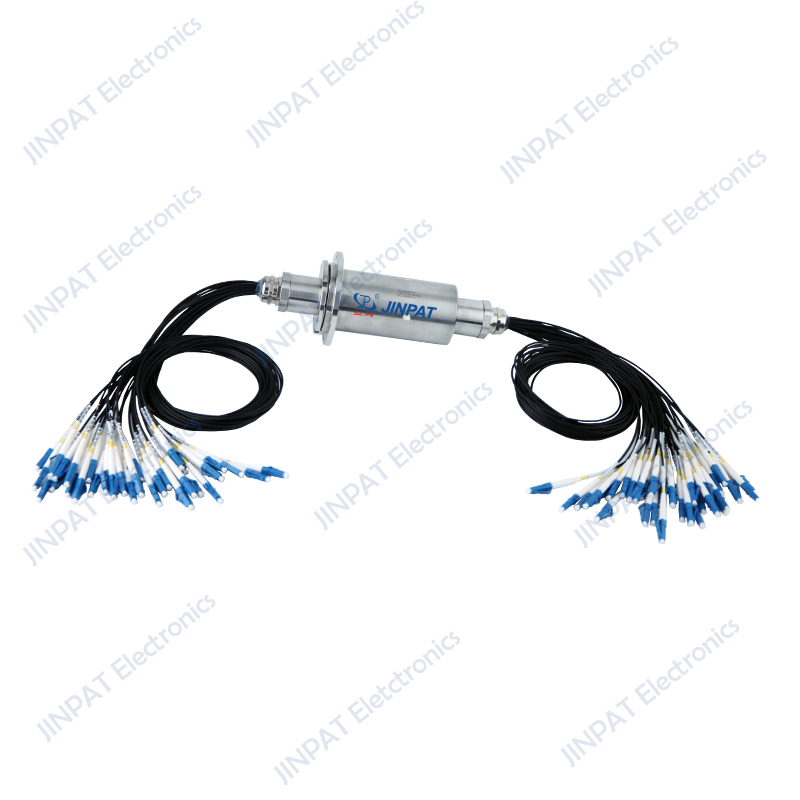

Fiber Optic Rotary Joints LPFO-37A

The LPFO-37A fiber optic slip ring ensures seamless data transmission for large cable drums and marine cranes, delivering stability and efficiency in harsh environments.

Model Code：LPFO-37A
Joint type：ST/FC/SC/LC,etc
Operating wavelength：850-1550
Dimension：/
Insertion loss：≤5dB

We Are Invested in Your Success

At JINPAT, we are committed to continuously investing in innovative technologies, solutions, and services to help our customers succeed.

Making A Case For Multitasking in Your Shop

Requirements constantly changing, or need to quickly adapt? Multitasking processes can include turning, milling, surfacing, drilling, tapping, hobbing, and more — which allows for flexibility in creating a variety of parts.
Add Automation. Add Success.

Get the greatest utilization out of your JINPAT machines with our automation pairings that create stronger processes and accurate output.
ROI is Endless with 5-Axis Machining

It is proven that shops that capitalize on the abilities of 5-axis machining find a reduction in lead times, increased accuracy, a heightened reputation, and, most importantly, more revenue potential. So, what are you waiting for?

Technology Innovation

Let data and energy be transmitted without obstruction, JINPAT slip ring, injecting power core for intelligent manufacturing
Product Center

JINPAT can provide a well-fit, efficient and economical custom slip ring solutions to the clients.

Our custom integrated slip ring can transmit various medium and signals like fluid, gas, power, Fast Ethernet signals, electrical signals, optical signals and radio frequency signals, etc.
