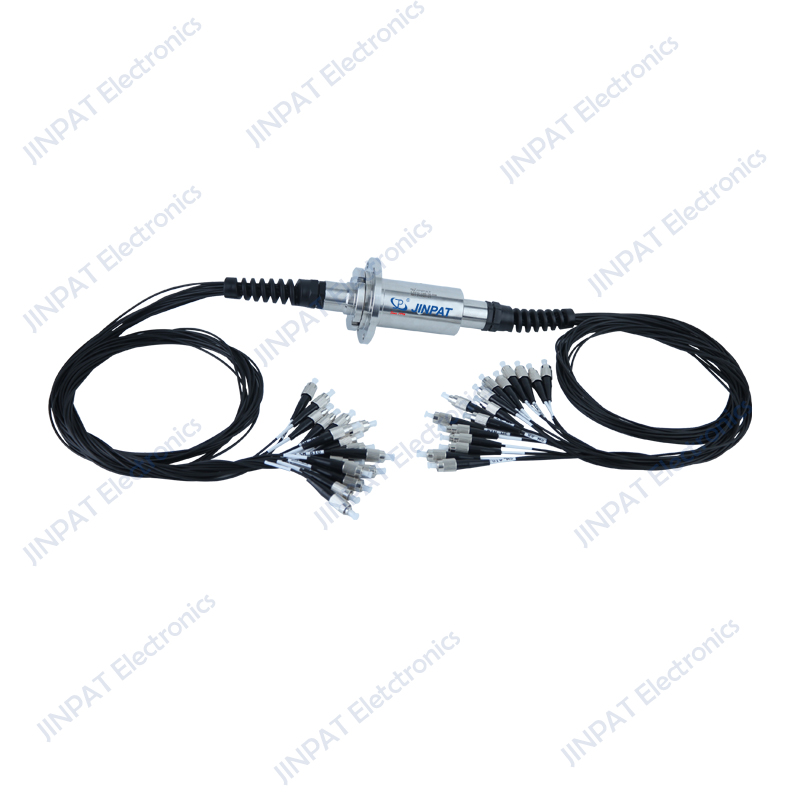

The LPFO-19B fiber optic slip ring is a high-performance solution for cable drum operations, ensuring seamless energy and signal transmission. It enhances system efficiency, reduces downtime, and improves overall operational safety, making it ideal for demanding industrial environments.
Specifications | |||
Fiber types |
SM or MM | Maximum speed | 300rpm |
| Channel number | 8-18 | Package style | Pigtails on both ends |
Wavelength range |
SM:1310/1550nm MM:850/1300nm |
Weight,approx |
1000g (No tail cable and connection in cluded) |
Insertion loss |
＜5dB | Jacket types | 2.0mm armor |
| Insertion loss ripple | ＜2dB | Connector types | Fc/SC/ST/LC(PC or APC) |
Return loss |
SM:≥40dB MM:≥25dB |
Estimated life cycle |
＞50 million revolutions |
Crosstalk |
≥50dB | vibration | MIL-STD-167-1A |
Max Optlcal power |
20dB | Package style | MIL-STD-167-810G |
Working temperature |
-20~+65°C（Industrial grade） |
IP rating | IP54(Up to IP67) |
Storage temperature |
-55~+85℃ | ||
| Joint type | Operating wavelength | Dimension | Insertion loss |
|---|---|---|---|
| ST/FC/SC/LC,etc. | 850-1550 | φ26/φ38*119 | ＜4dB |
| ST/FC/SC/LC,etc. | 850-1550 | φ26/φ38*119 | ＜4dB |
| ST/FC/SC/LC,etc | 850-1550 | Φ26/Φ38*119 | ＜4dB |
| FC/SC/ST/LC(PC or APC) | 850-1550 | φ26/*38*119 | ＜4dB |
| ST/FC/SC/LC,etc. | 850-1550 | φ44*111 | ＜4dB |
| ST/FC/SC/LC,etc | 850-1550 | / | ≤5dB |
| ST/FC/SC/LC,etc | 850-1550 | / | ≤5dB |
| ST/FC/SC/LC,etc. | 650-1650 | φ6.8/φ15.2*28 | ＜2dB |
