IP68 protection grade slip ring
The IP68 slip ring must have very strong hardness and superior sealing for the purpose of working normally for hundreds of meters under water.

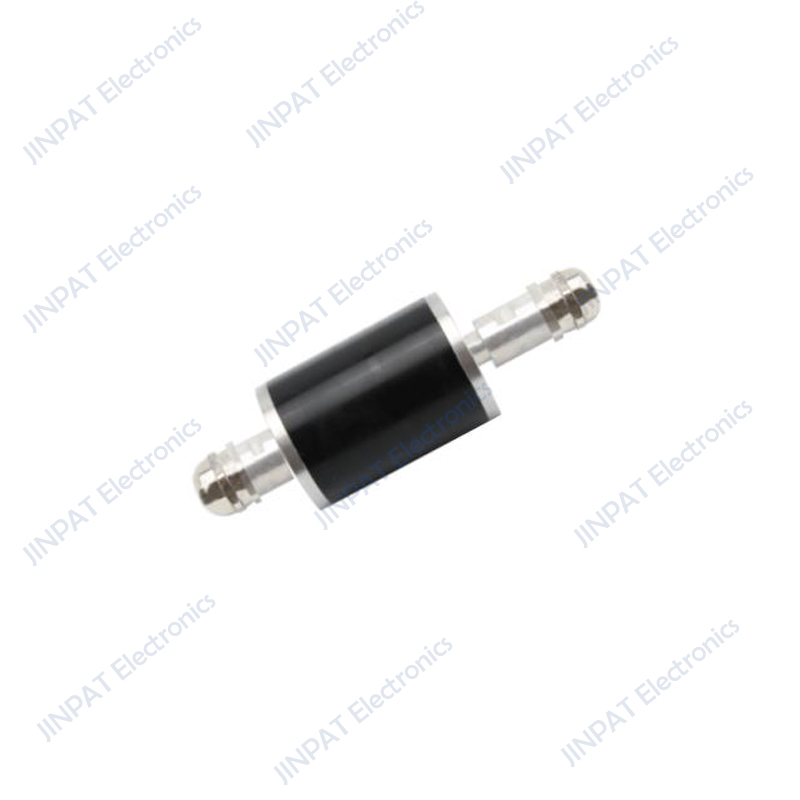

- Representative model: LPC-18A-0605-IP68
- Number of Circuits 18 CKT
High protection slip rings enhance dust and water resistance and shell impact resistance by adding seals and optimizing shell structure and strength.
LPC-18A-0605-IP68 -Applications
Ships / Port Equipment / Underwater Operations Equipment / Offshore Oil Platforms / Deep Sea Submersibles / Underwater Vehicles
Features:
1、High protection grade slip ring is specially developed for underwater, high pressure seabed and various harsh environments
2、High sealing grade, protection grade reaches IP68
3、Stable and reliable
Advantages:
1、Support signal and power transmission
2、All stainless steel full seal design, professional sealing program
3、To meet the long-term underwater or corrosive environment, the theoretical value of working water depth is more than 300 meters
Electronic & Electric |
Mechanical | |||
Circuits |
Total |
6 CKT |
Working Speed |
0~60RPM |
Detail |
5A |
Inner Diameter |
/ |
|
Rating Voltage |
0~48VDC |
Contact Material |
Gold to gold |
|
Dielectric Strength |
≥200VAC@50Hz |
Shell Material |
Aluminum alloy |
|
Insulation Resistance |
≥100MΩ@200VDC |
Lead Wire Length |
Stator:250±5mm Rotor:250±5mm |
|
Environment |
Remarks | |||
Working Temperature |
-20°C~+60°C |
Dynamic Contact Resistance |
≤30mΩ |
|
Working Humidity |
≤60%RH |
Life Span |
Can be customized |
|
IP |
IP68 |
/ |
||
