USB Slip Rings JINPAT USB Slip Rings - High - Quality Solutions for Rotating Electrical Connections JINPTA Electronics

Features:

◎ Dual Compatibility: Delivers seamless connectivity with both USB 2.0 (480 Mbps) and USB 3.0 (5 Gbps) for broad device support.

◎ Multi-Signal Integration: Unifies USB, Ethernet, HDMI, SDI, power, and control signals in a single streamlined solution.

◎ High Performance: Engineered for superior signal integrity with low insertion loss, reduced crosstalk, and effective EMI shielding.

◎ Compact & Reliable: Precision-built for stable performance in rotating and space-constrained applications.

◎ Customizable Designs: Flexible options including circuit counts, connector types, and mechanical layouts to fit diverse system needs.

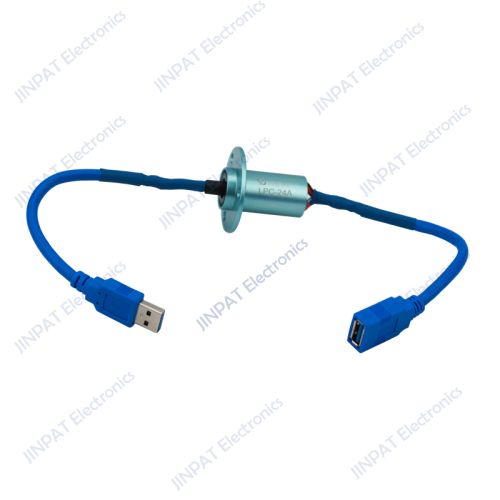

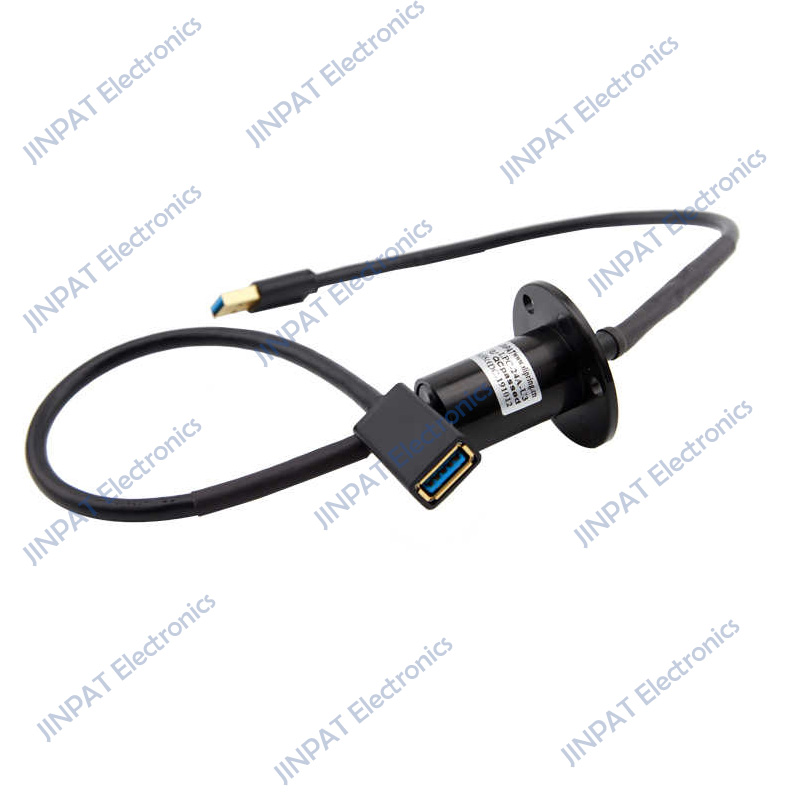

USB Slip Rings

JINPAT USB Slip Rings enable reliable transmission of USB 2.0 (480 Mbps) and USB 3.0 (5 Gbps) signals across rotating interfaces, delivering stable data transfer in dynamic motion systems. Capable of supporting data rates up to 480 Mbps for USB 2.0 and 5 Gbps for USB 3.0, these slip rings ensure high-speed, low-interference performance even in demanding operating conditions.

Designed for versatile integration, JINPAT’s solutions can be seamlessly combined with Ethernet, SDI, HDMI, control signals, and power circuits. Their compact and modular construction allows easy adoption in space-constrained applications, making them ideal for use in video surveillance, medical equipment, industrial automation, robotics, and high-resolution imaging systems.

Customization & Services

Tailor your slip ring with specific signal types, channel counts, protection levels, or mounting configurations. 3D CAD models and dedicated technical support are available upon request.

Can’t find a suitable off-the-shelf model? Our team offers 24/7 technical assistance to help design a solution that meets your exact requirements.

For detailed product specifications, please refer to our official datasheets or get in touch with the sales team.

Engineered for global applications – our slip rings are precision-built to deliver unwavering reliability in mission-critical environments.
