RF Rotary Joints

Up to 4 circuits (model with more circuits is customizable)
Frequency up to 50GHz
compact structure with low interference
Transmit multifarious signals simultaneously
Ultra low insertion loss and transmission fluctuation
Long service life and maintenance-free

JINPAT Slip Pings, connecting infinite possibilities.

Specialized in rotary transmission for 30 years +, stable and reliable for every revolution.

JINPAT high-frequency rotary joints are designed to ensure seamless and stable transmission of RF signals across rotating interfaces. Engineered for precision and durability, these rotary joints minimize signal loss and interference, making them ideal for radar systems, satellite communication, broadcasting equipment, and high-speed data transmission applications. With low insertion loss, excellent VSWR performance, and a compact design, JINPAT high-frequency rotary joints provide reliable operation in demanding environments. Customizable configurations are available to meet specific technical requirements, ensuring optimal performance for diverse industrial and military applications.

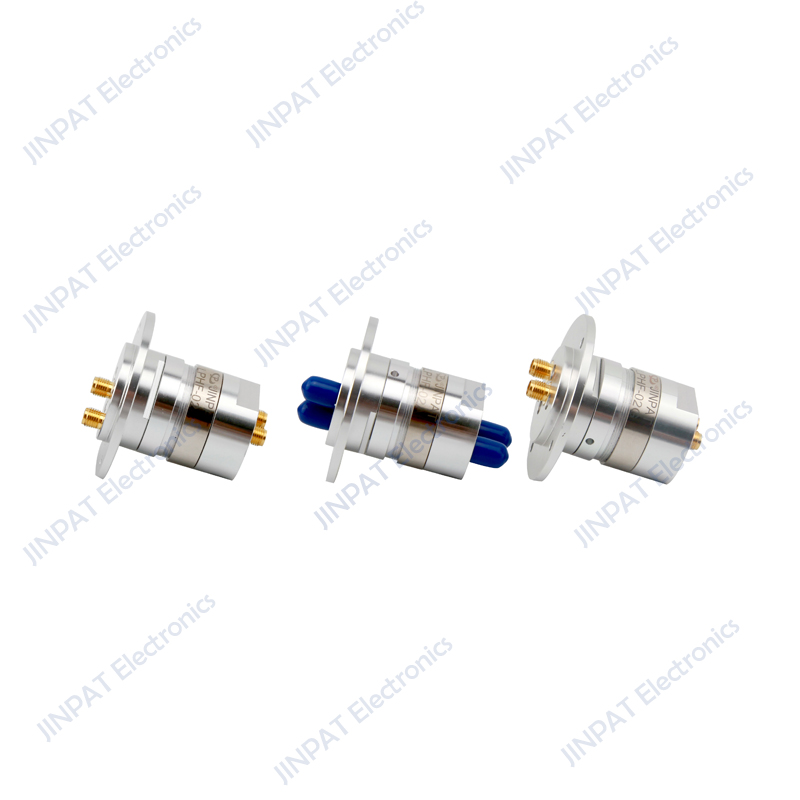

RF rotary joint LPHF-01

JINPAT high-frequency rotary joints deliver reliable RF signal transmission with minimal loss and interference. Designed for radar, satellite communication, and broadcasting, they offer customizable solutions for diverse applications.

Model Code：LPHF-01
Frequency range：DC-18GHz
Interface type：SMA-F(50Ω)
Maximum peak power：1500W

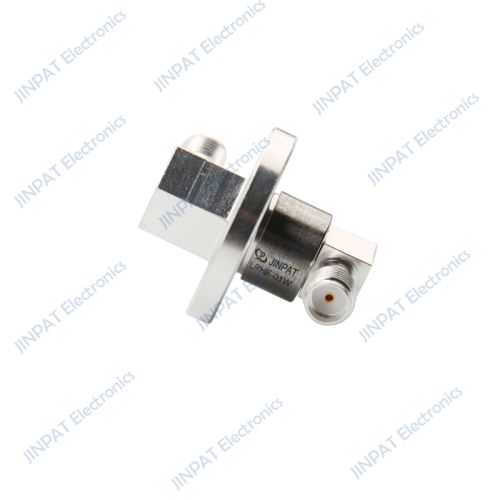

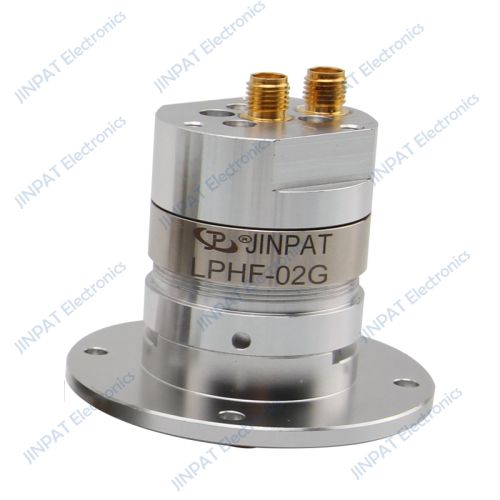

RF rotary joint LPHF-02

Engineered for precision, JINPAT high-frequency rotary joints provide stable RF transmission with low insertion loss. Perfect for radar, satellite systems, and broadcasting, with flexible customization options.

Model Code：LPHF-02
Frequency range：DC-4.5GHz
Interface type：SMA-F(50Ω)
Maximum peak power：1000W

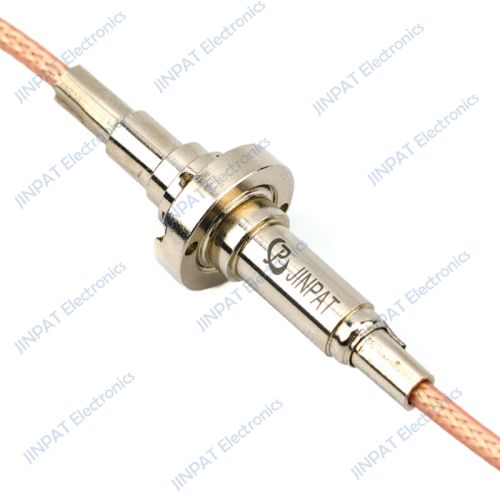

RF rotary joint LPHF-03

JINPAT’s high-frequency rotary joints ensure seamless RF signal transmission with reduced interference and insertion loss. Ideal for demanding applications such as radar, satellite communication, and broadcasting, with customizable configurations.

Model Code：LPHF-03
Frequency range：DC-2GHz
Interface type：SMA-F(50Ω)
Maximum peak power：1000W

RF rotary joint LPHF-04

Achieve stable RF transmission with JINPAT high-frequency rotary joints, designed for low-loss performance and minimal signal disruption. Suitable for radar, satellite communication, and media broadcasting, with tailored design options available.

Model Code：LPHF-04A
Frequency range：DC-4GHz
Interface type：SMA-F(50Ω)
Maximum peak power：1000W

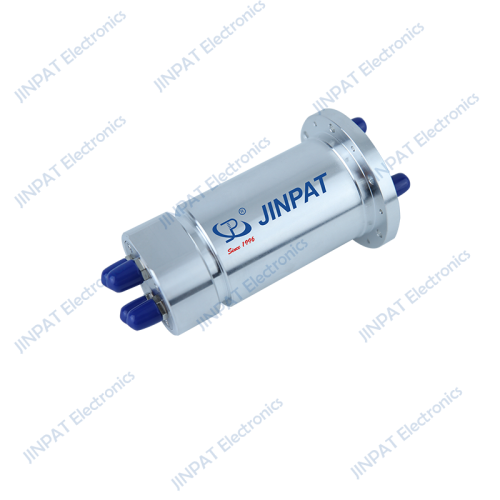

High Frequency Slip Rings LPCC-01A

JINPAT high-frequency rotary joints are built for high-speed RF signal transmission with exceptional stability and low loss. They support radar, satellite systems, and broadcasting needs, offering adaptable design solutions.

Model Code:LPCC-01A
Frequency range:DC-3GHz
Interface type:Optional
Maximum peak power:1000W

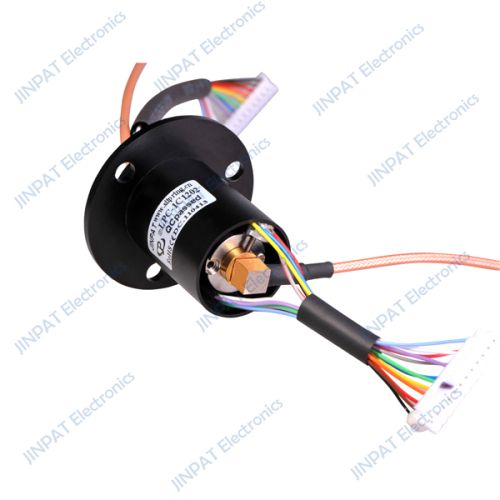

High Frequency Slip Rings LPC-1C1202

The LPC-1C1202 is a compact hybrid slip ring (22mm × 39.8mm) with customizable design. It offers high precision, low resistance, and long life, making it ideal for weak signal transmission in small rotary systems.

Model Code：LPC-1C1202
Frequency range：DC-3GHz
Interface type：Optional
Maximum peak power：1000W

We Are Invested in Your Success

At JINPAT, we are committed to continuously investing in innovative technologies, solutions, and services to help our customers succeed.

Making A Case For Multitasking in Your Shop

Requirements constantly changing, or need to quickly adapt? Multitasking processes can include turning, milling, surfacing, drilling, tapping, hobbing, and more — which allows for flexibility in creating a variety of parts.
Add Automation. Add Success.

Get the greatest utilization out of your JINPAT machines with our automation pairings that create stronger processes and accurate output.

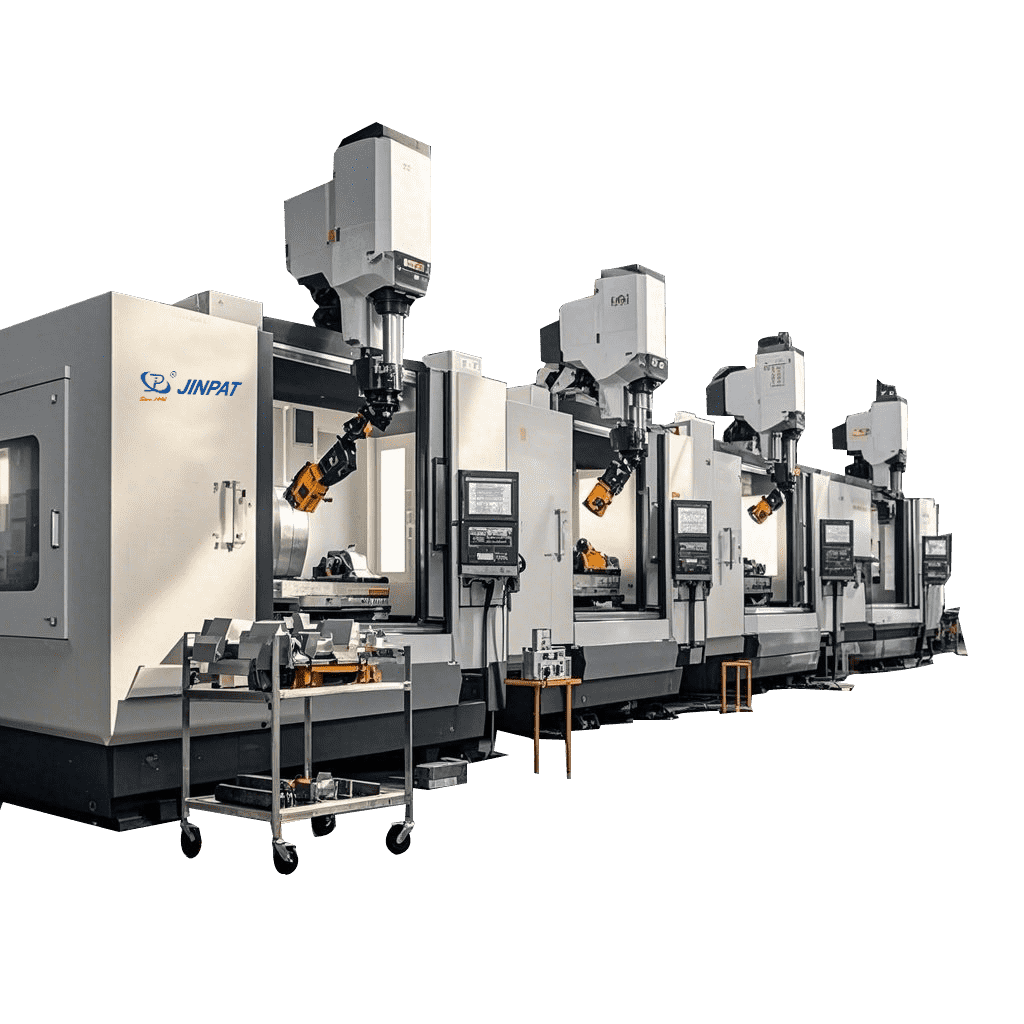

ROI is Endless with 5-Axis Machining

It is proven that shops that capitalize on the abilities of 5-axis machining find a reduction in lead times, increased accuracy, a heightened reputation, and, most importantly, more revenue potential. So, what are you waiting for?

Technology Innovation

Let data and energy be transmitted without obstruction, JINPAT slip ring, injecting power core for intelligent manufacturing
Product Center

JINPAT can provide a well-fit, efficient and economical custom slip ring solutions to the clients.

Our custom integrated slip ring can transmit various medium and signals like fluid, gas, power, Fast Ethernet signals, electrical signals, optical signals and radio frequency signals, etc.
